Roadrunner PRO Wiring DiagramUpdated a month ago

These are all unique to this model, should not be compatible with any other units

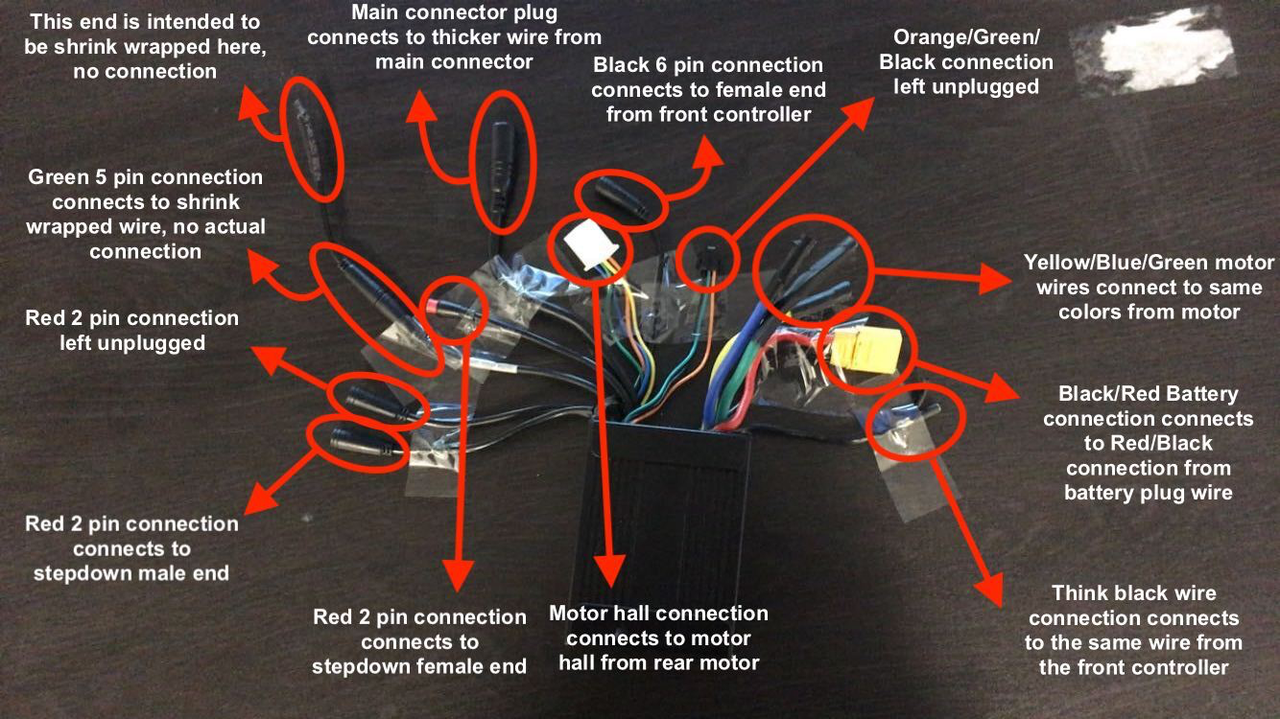

Rear Controller

a3076e55-71ae-4dee-87ba-f6a9cefc55b5

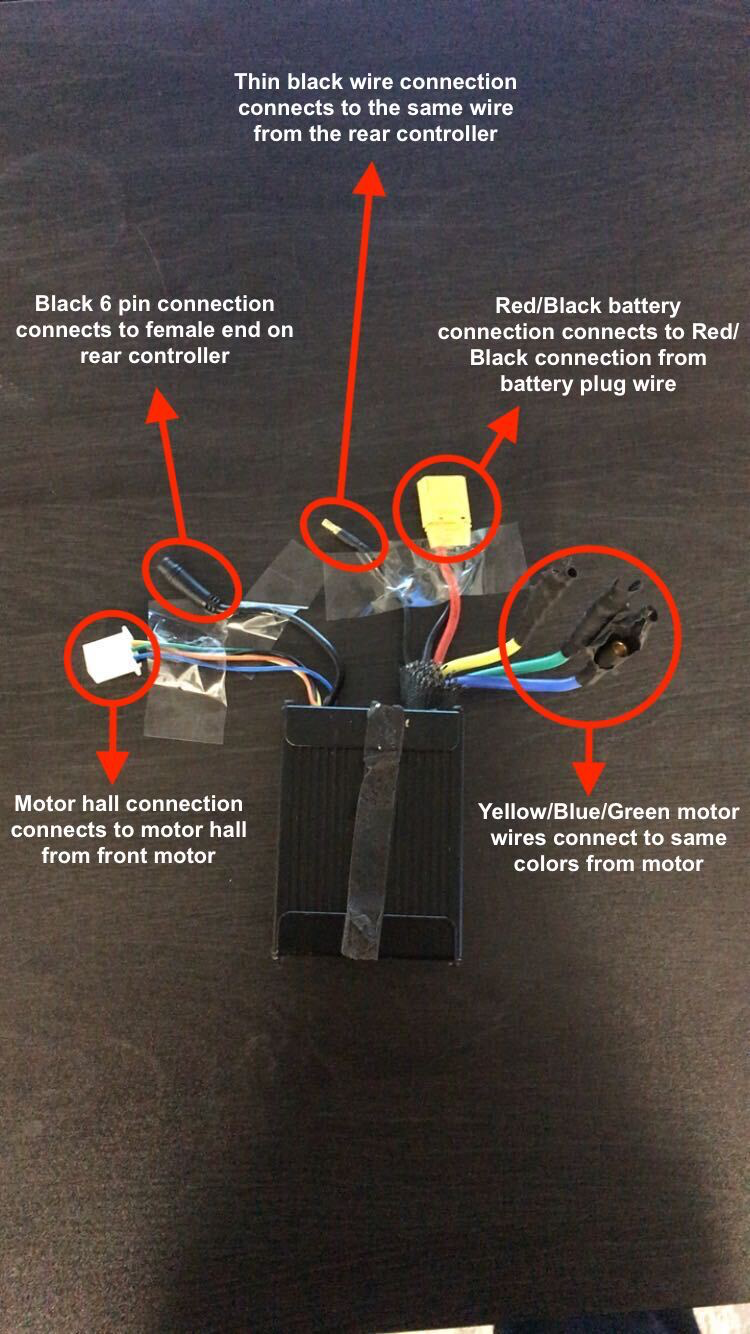

Front Controller

66896611-bd74-42fa-9bf1-55b666d3a46e

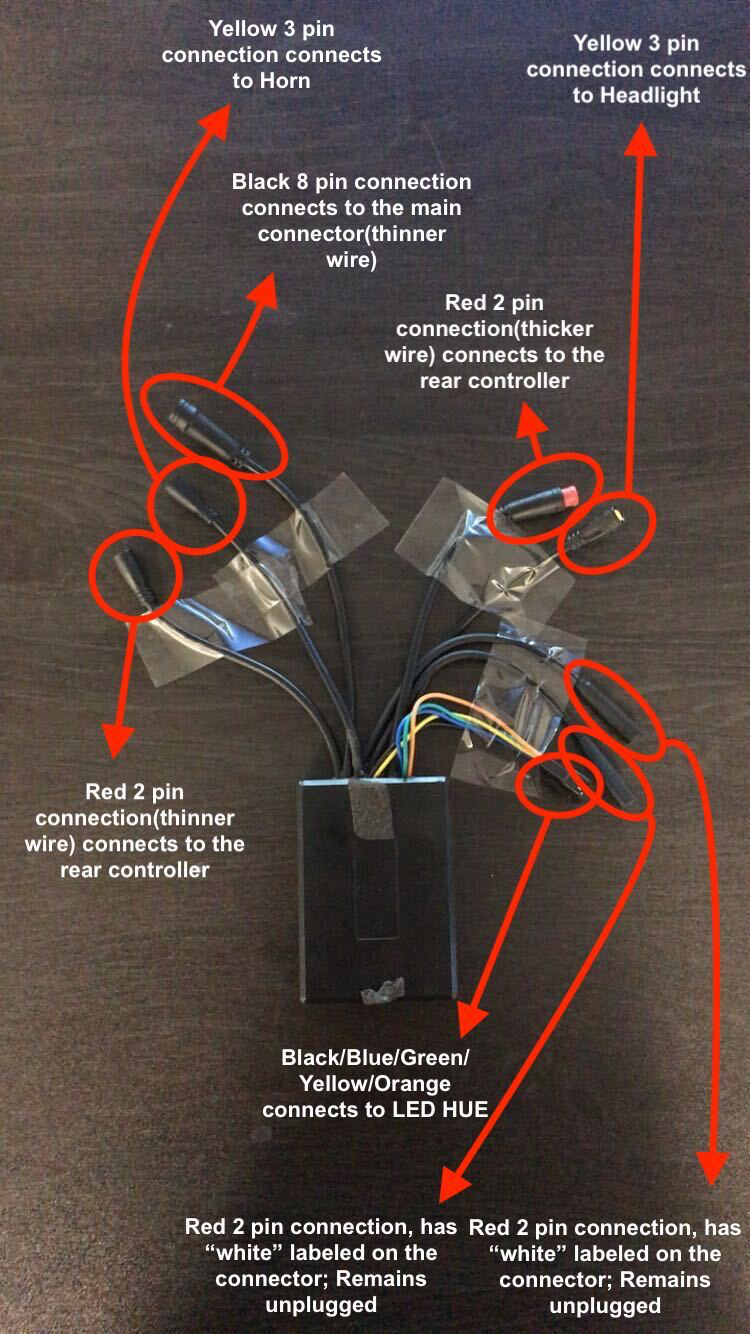

Stepdown

0abf3be6-b1a6-4ee9-ad5d-a3f69d868b06

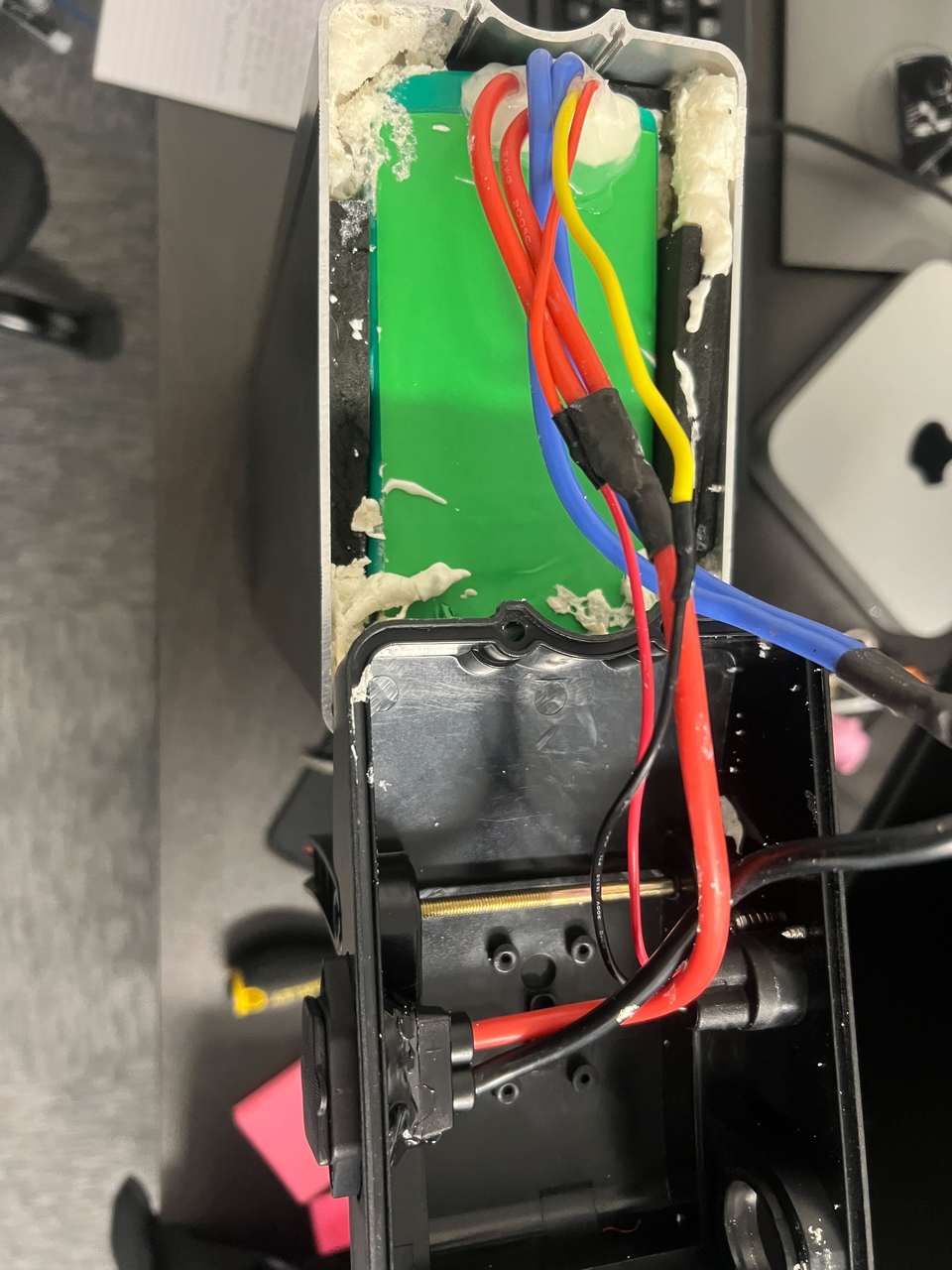

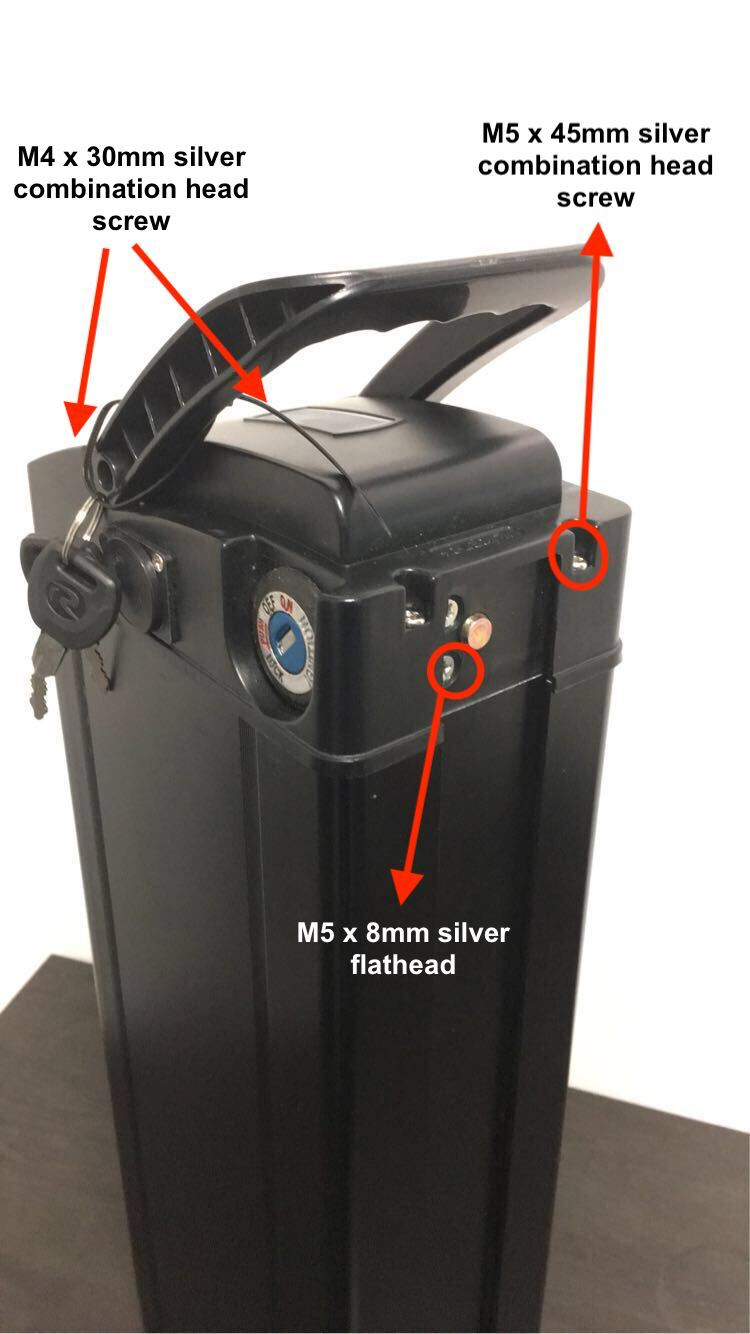

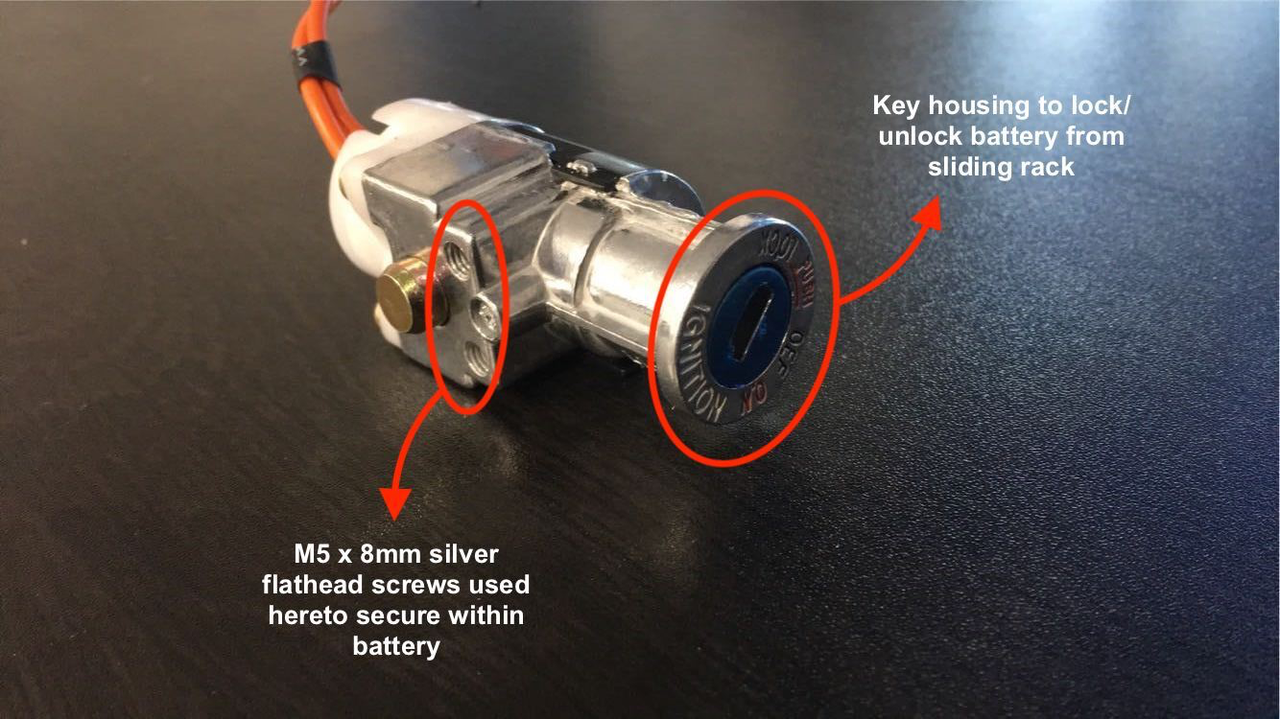

Battery

5e58ac03-1d76-416c-a995-4275a9aec2da

4abd6cca-2d4c-4f2c-bbf5-2f06f517674f

9aa4aabd-4d16-4c0b-8f54-3dc7aedc3e9d

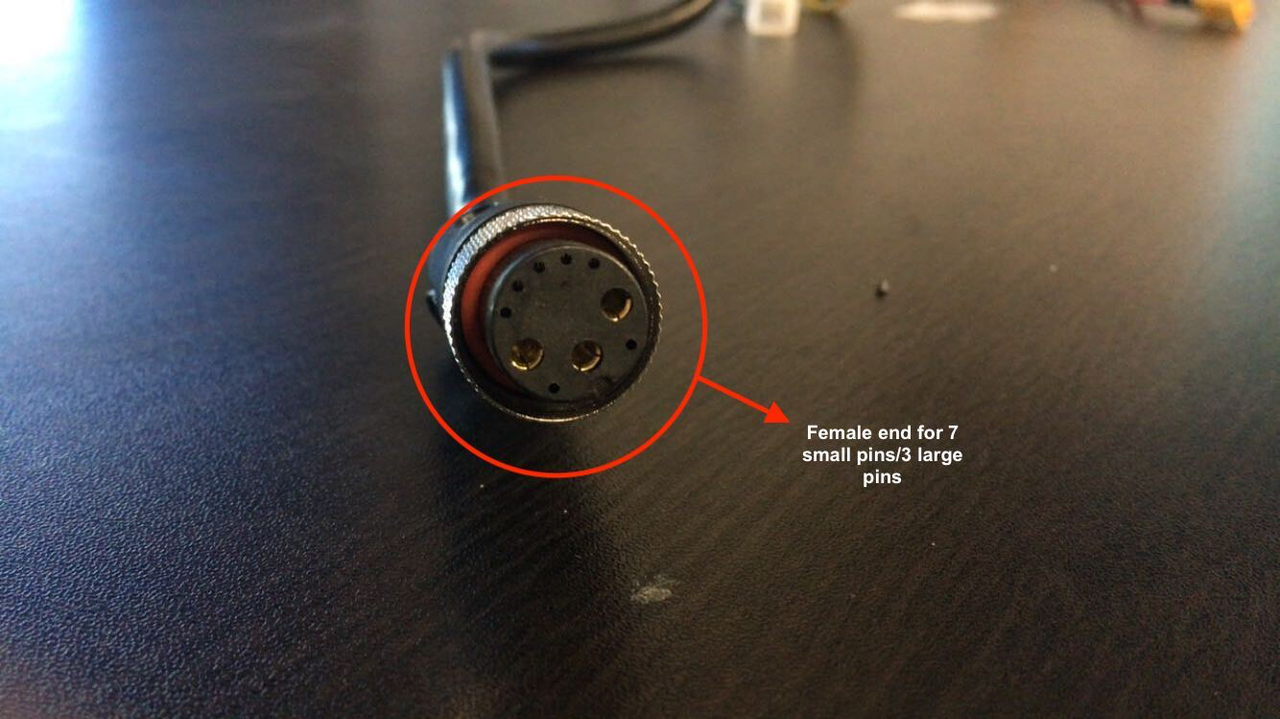

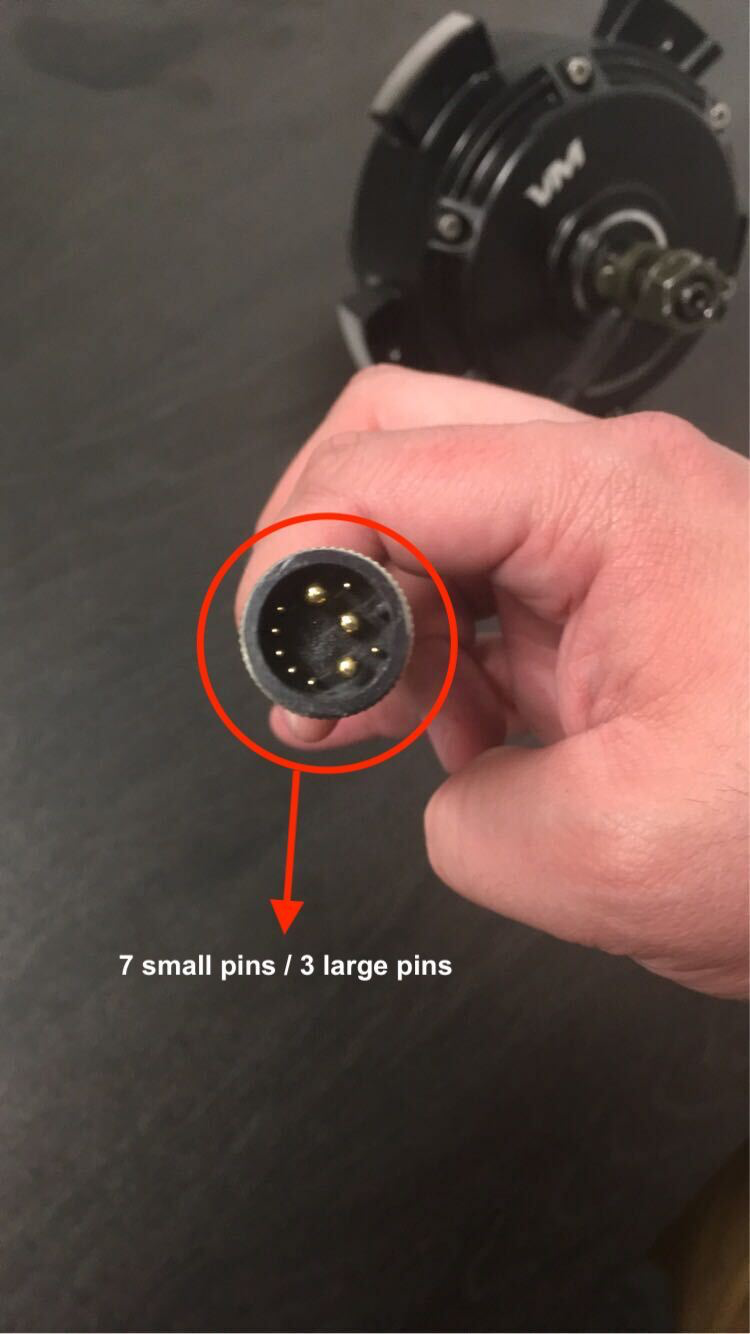

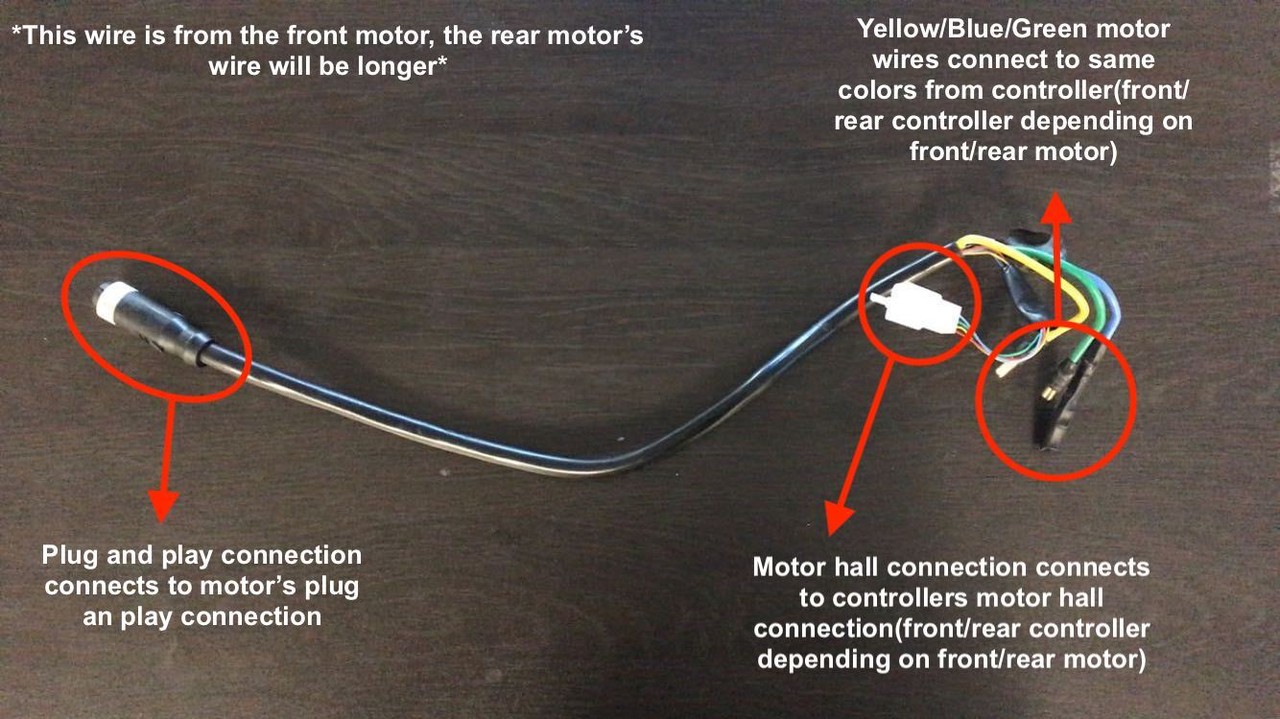

Motor plug

9d61194b-7f5c-4ac8-9ebf-72d6d186dd67

f4284217-d3e5-4c73-a356-f346a0bedece

b3a51421-bb7a-4d23-b5d8-88be4328adc9

662ab7cd-7fc8-40df-a52f-1b872f97cd20

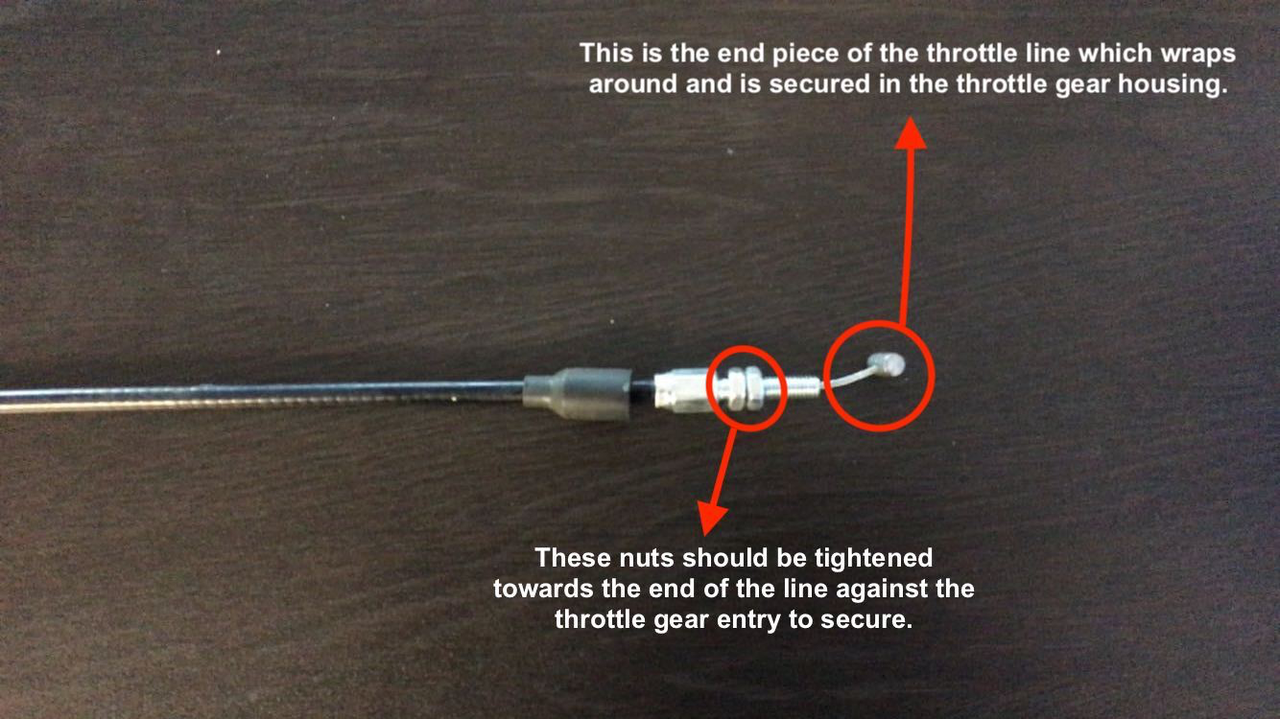

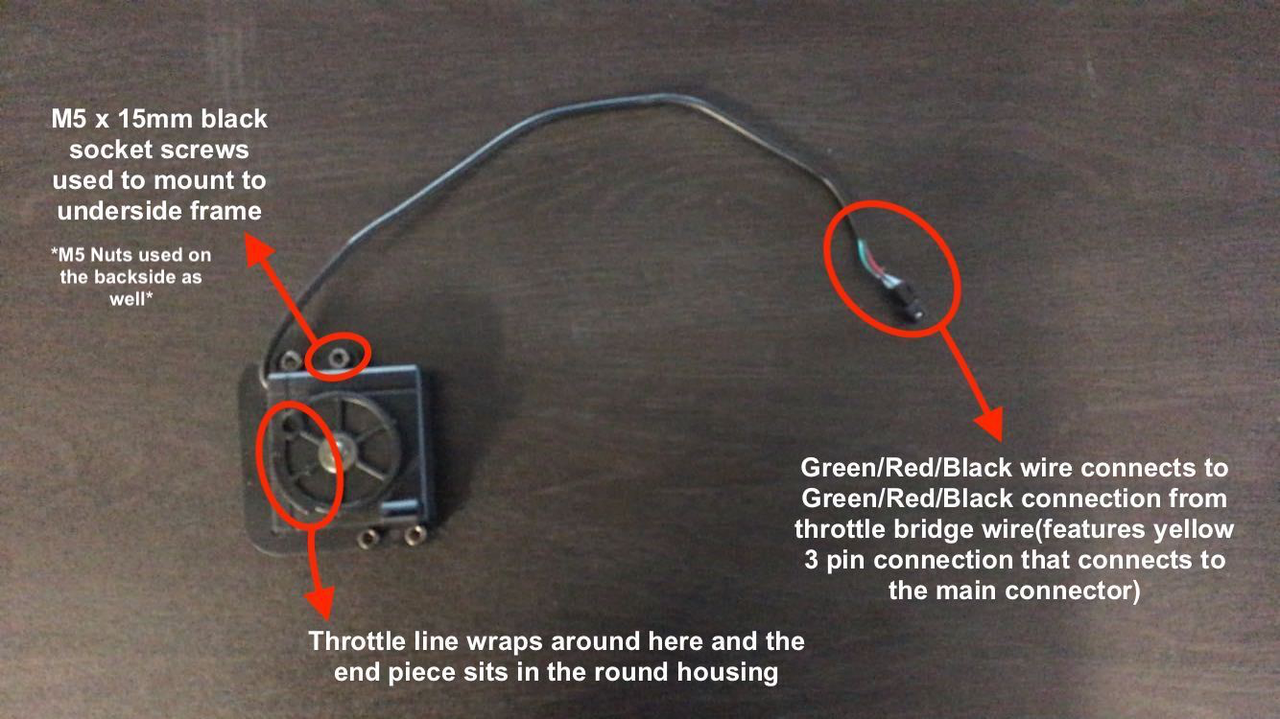

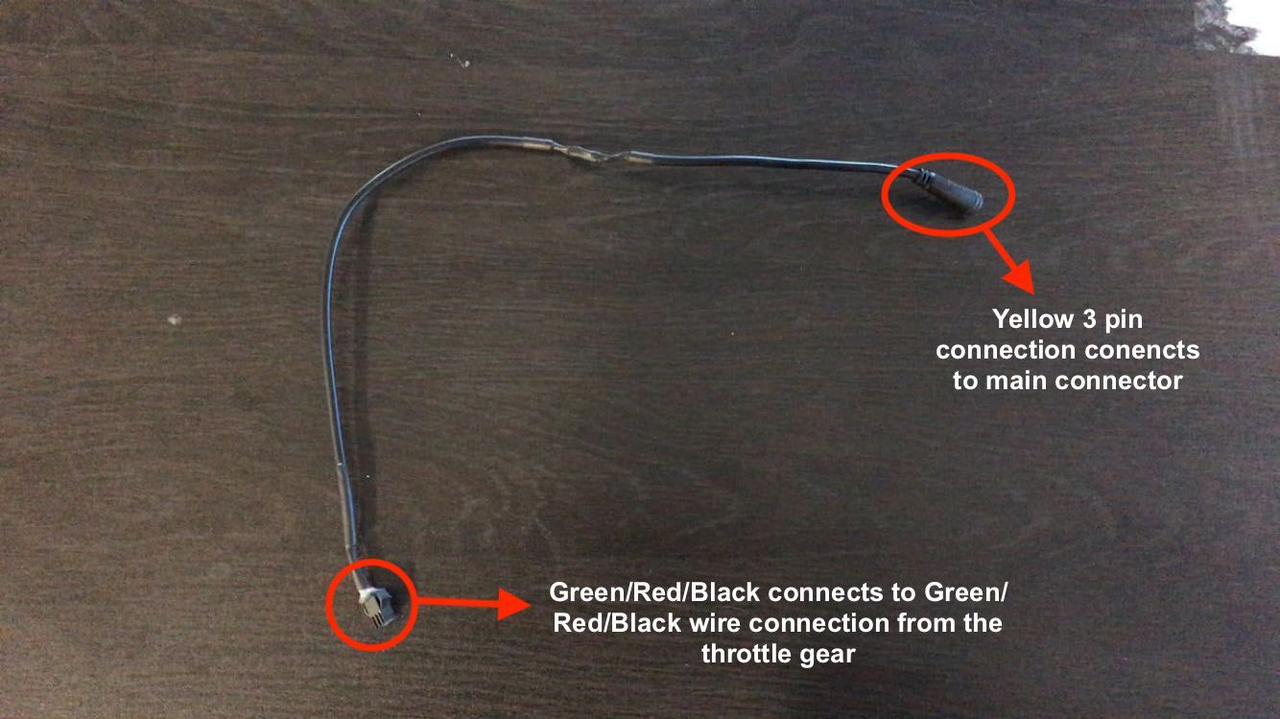

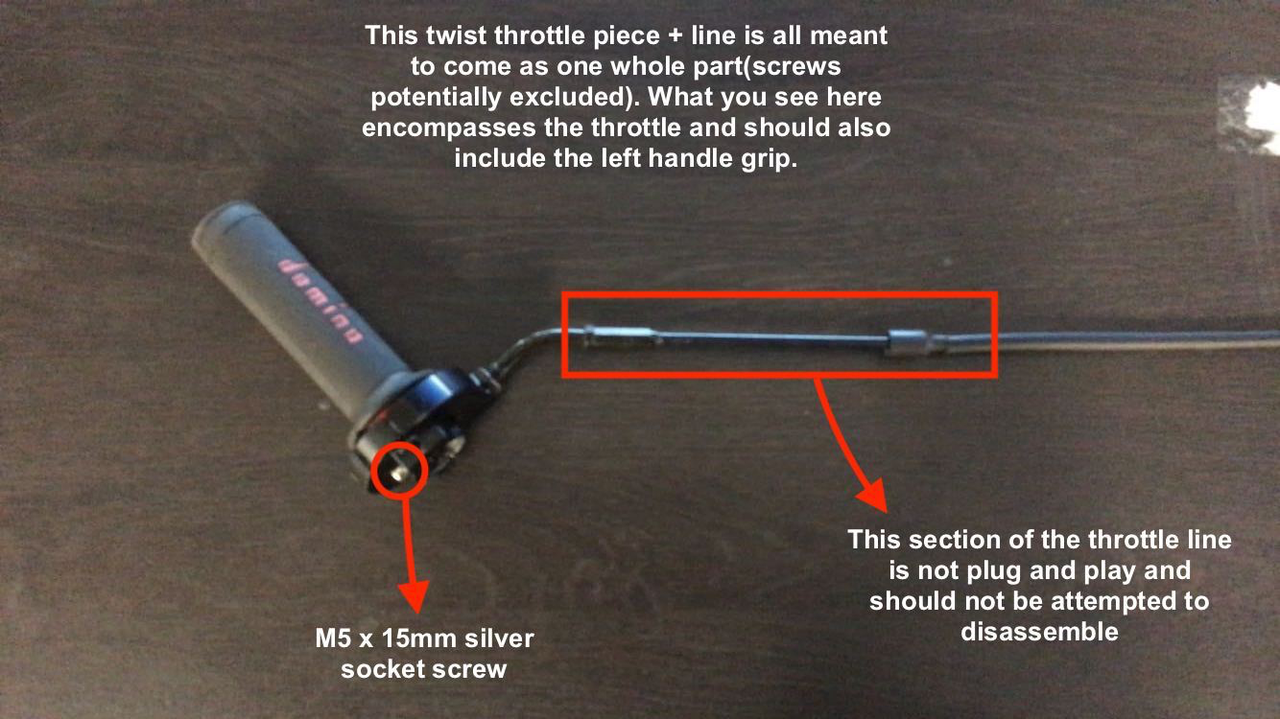

Throttle

413d3956-d7e5-4f37-ba5f-59cd60b0fcc6

ad54d95b-32cc-4d6c-9f42-5b918c47e1b1

3fdecacb-58b2-4519-bf62-b32c59258321

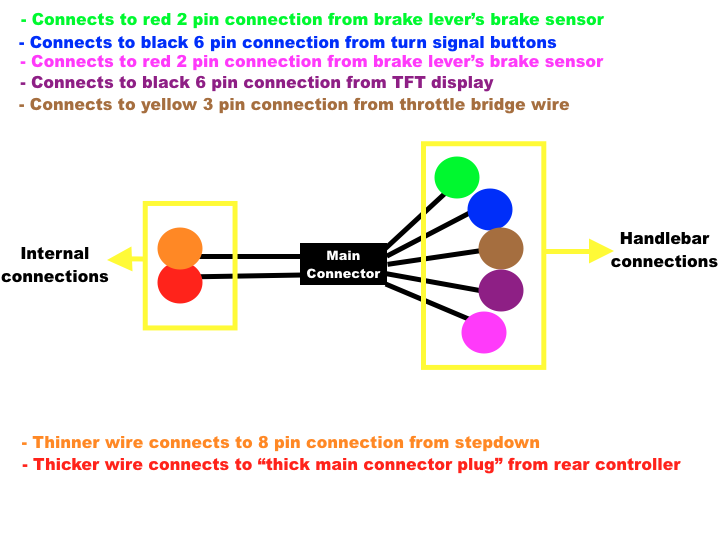

Main Connector

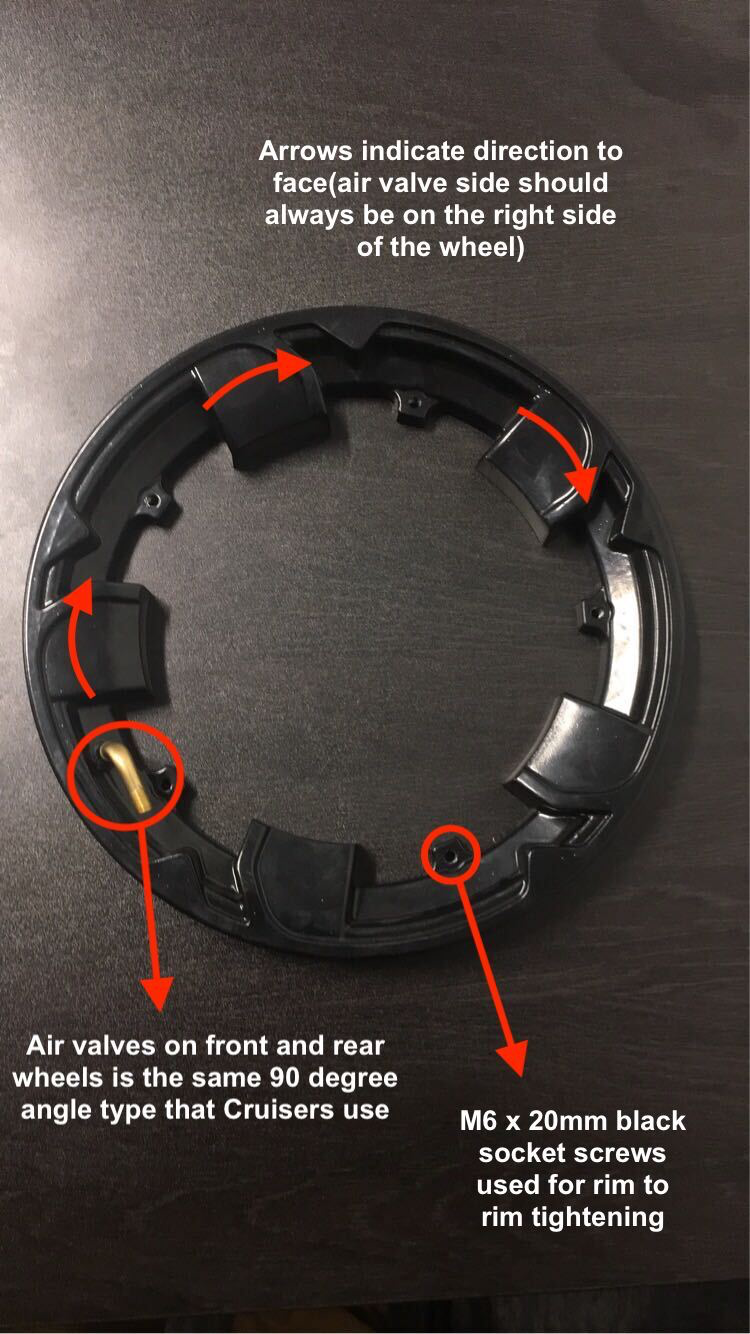

ab127d2a-6b69-4de8-a96a-e51ebc1a4e42Wheel hub/ Rim

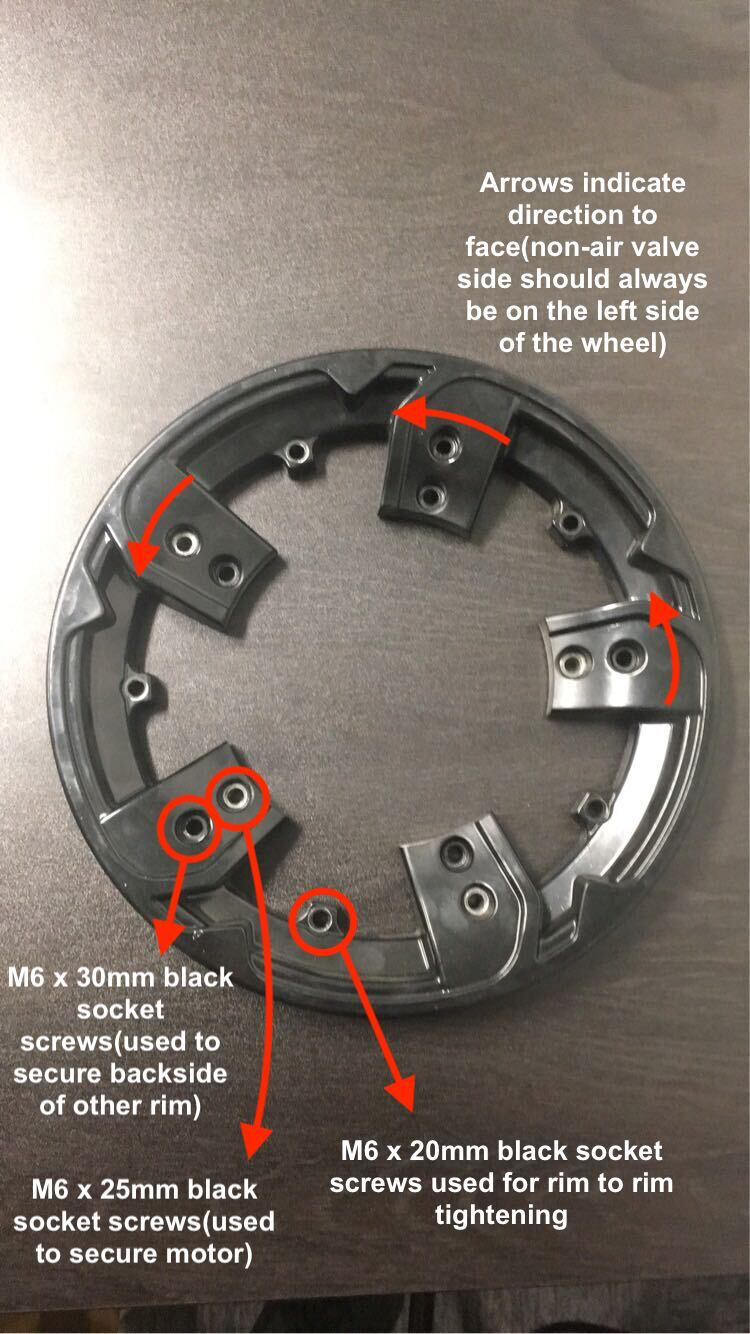

c0f50b2c-4516-4515-88f9-f250e0f5545c

281613c6-79fc-449d-88fb-67d767cbcb1e

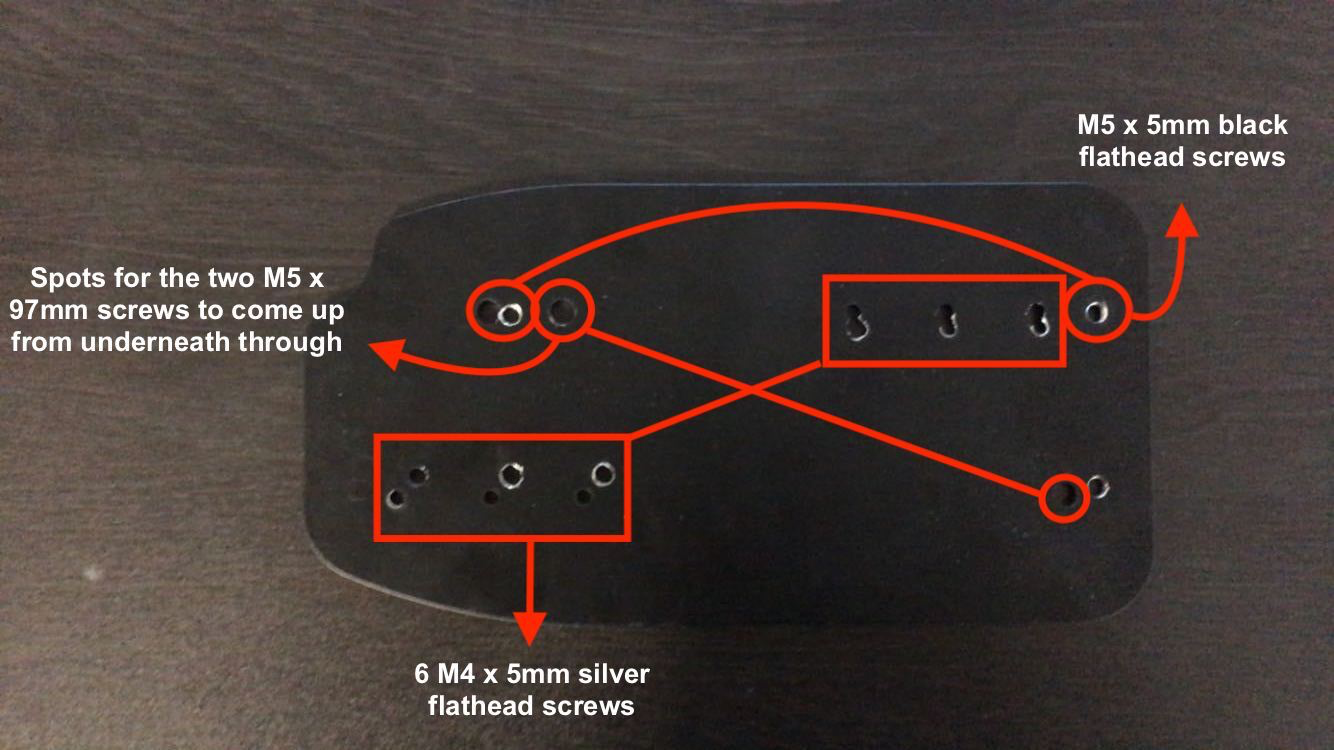

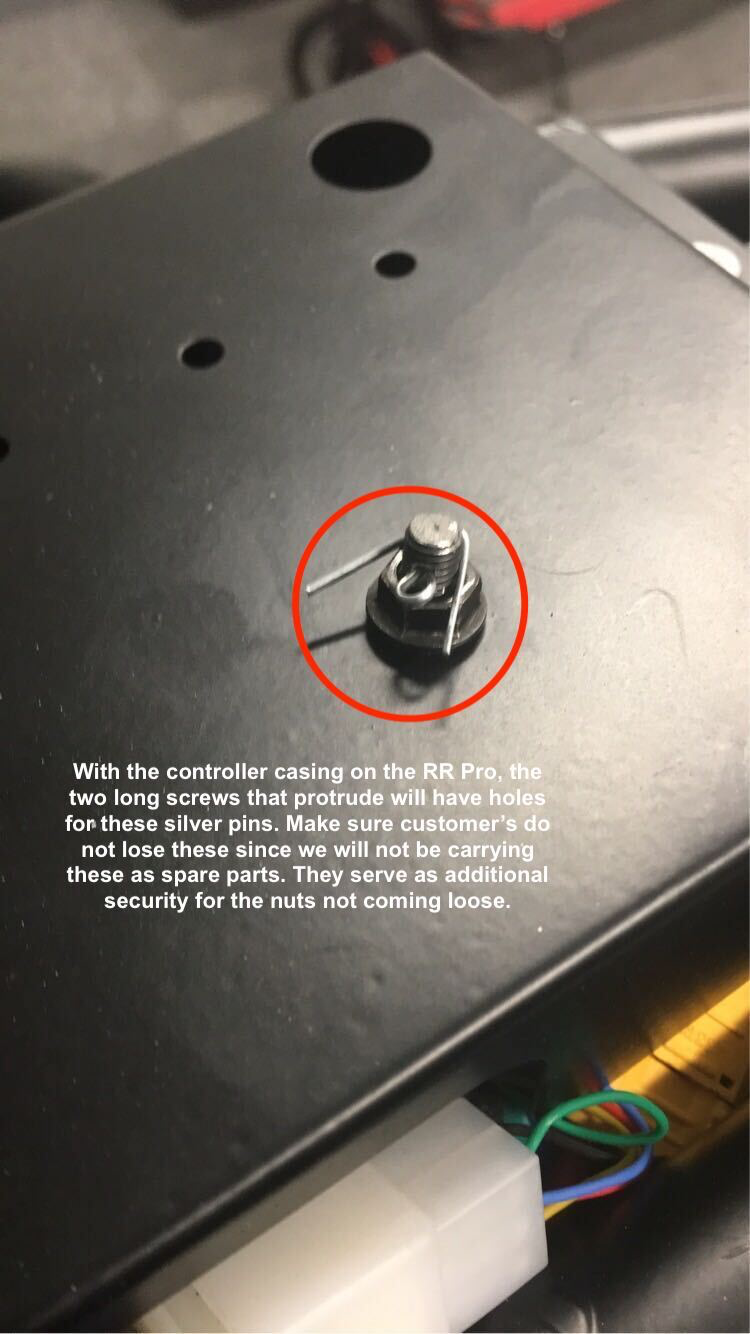

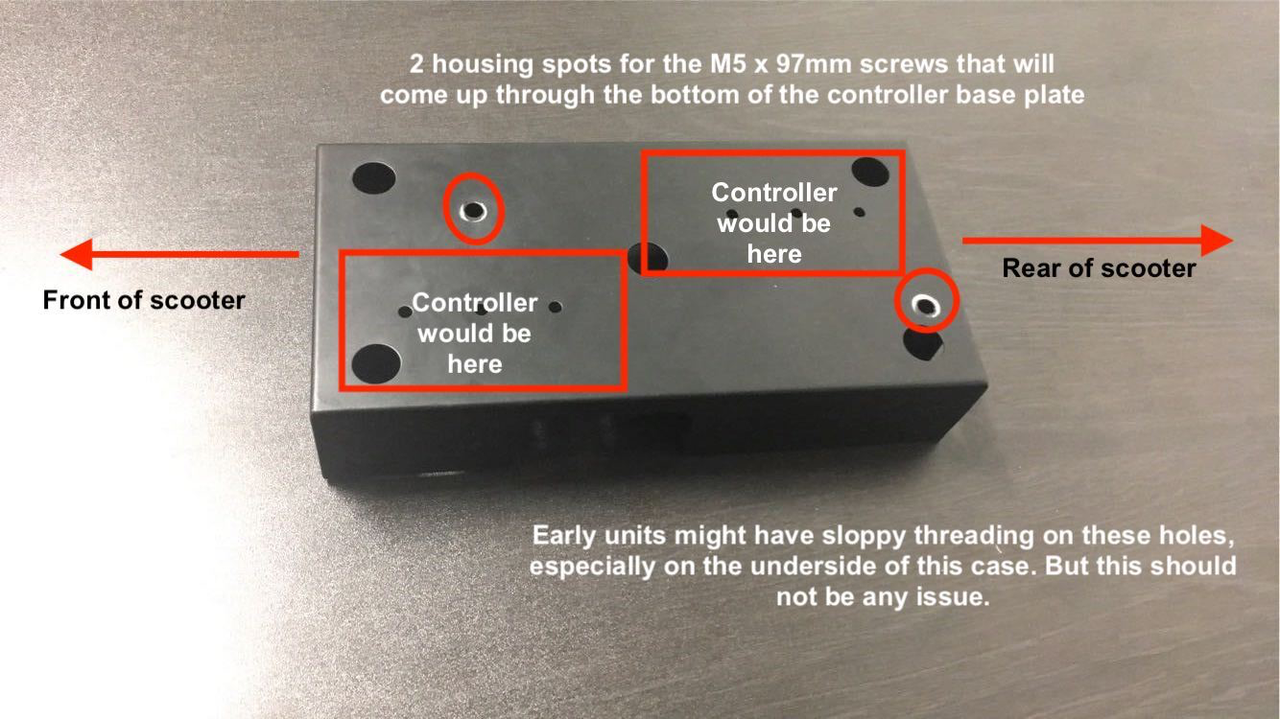

RR Pro Controller Casing + Base Plate

b55cea3f-f9b3-4ee5-8e76-66646ef6ac53

c4bbb111-572d-4459-8922-f24f341c73e0

download_image (3)

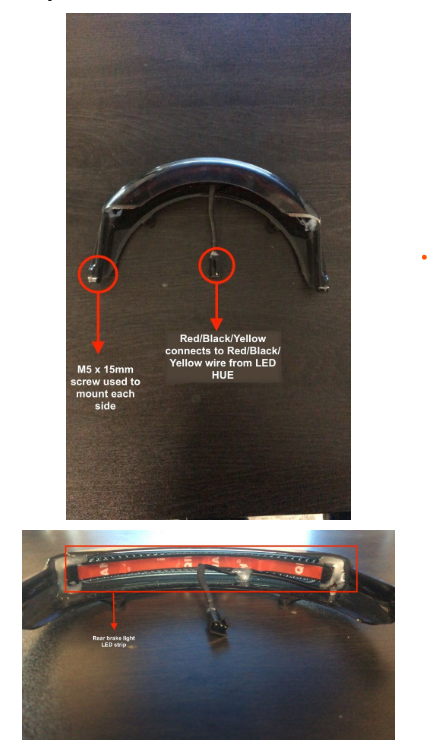

Rear Brake Light

assf

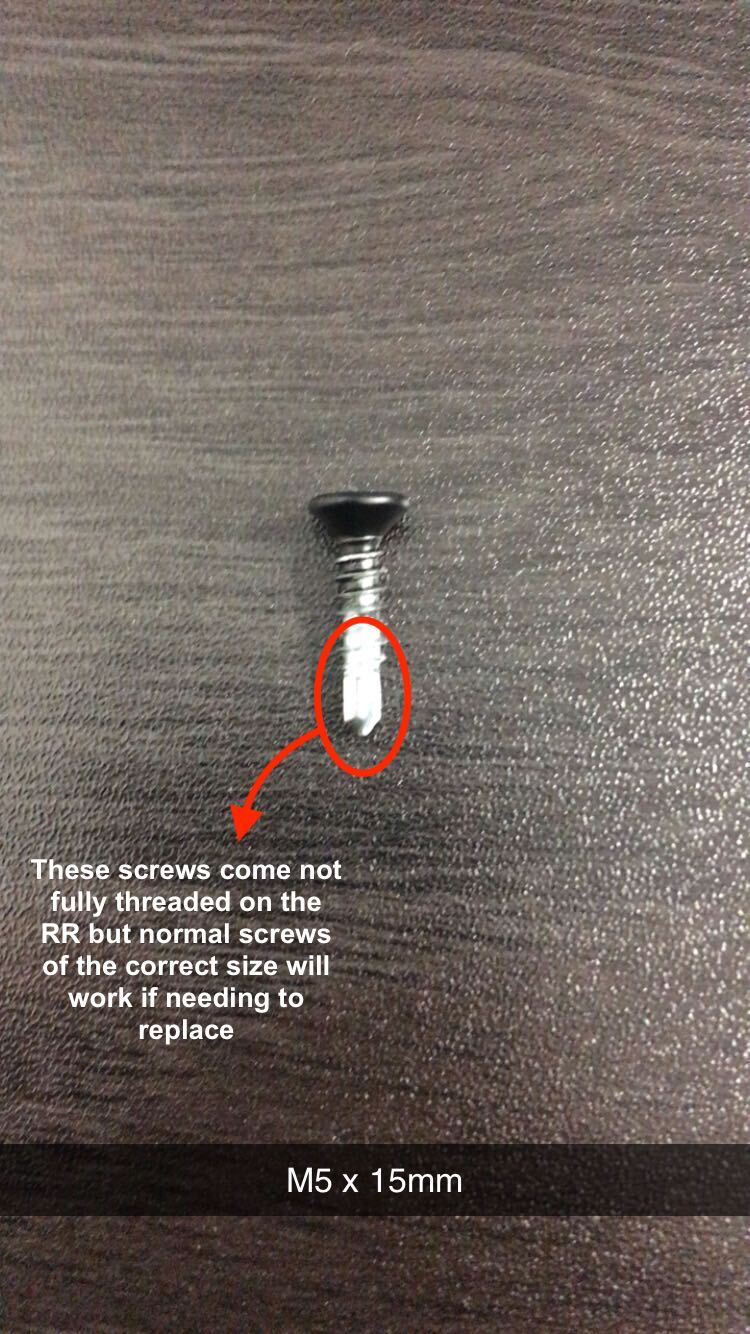

Rear brake light Mount Screw

1eb33db0-3b87-4d9a-b8a8-95b1bba8c1d1

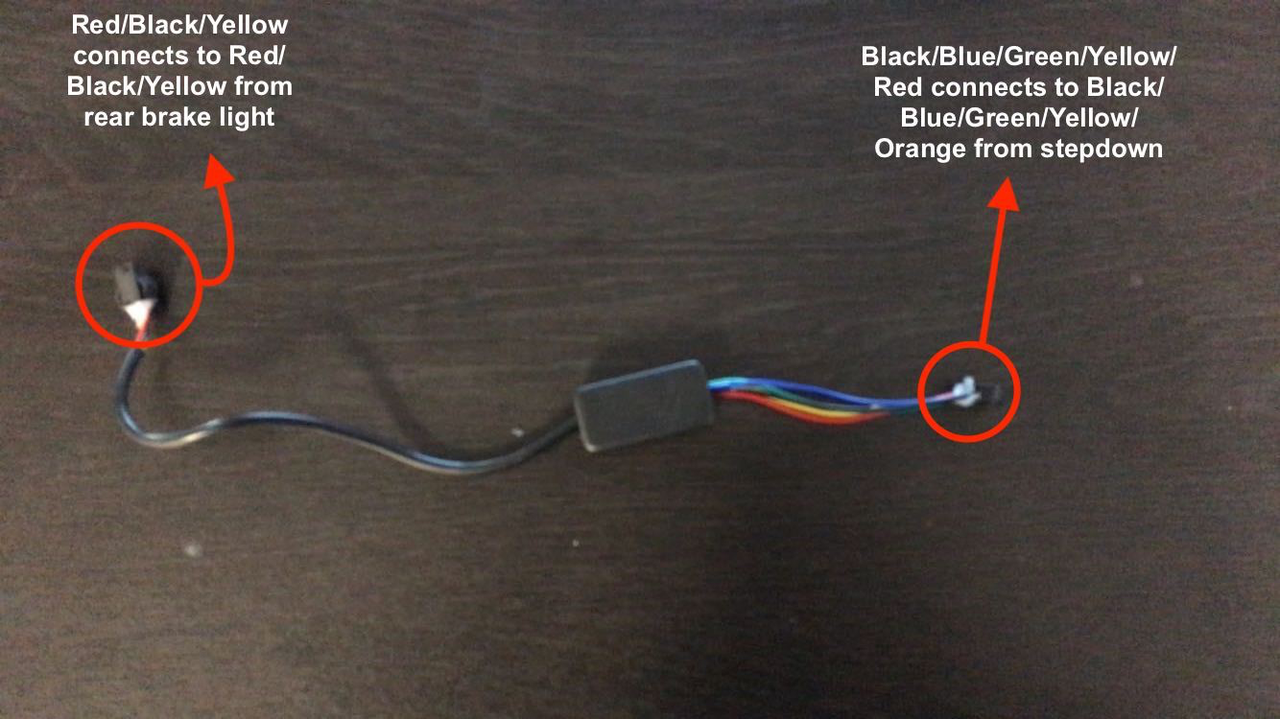

LED HUE

5d92e4a0-5291-46f1-a785-6103148b1638

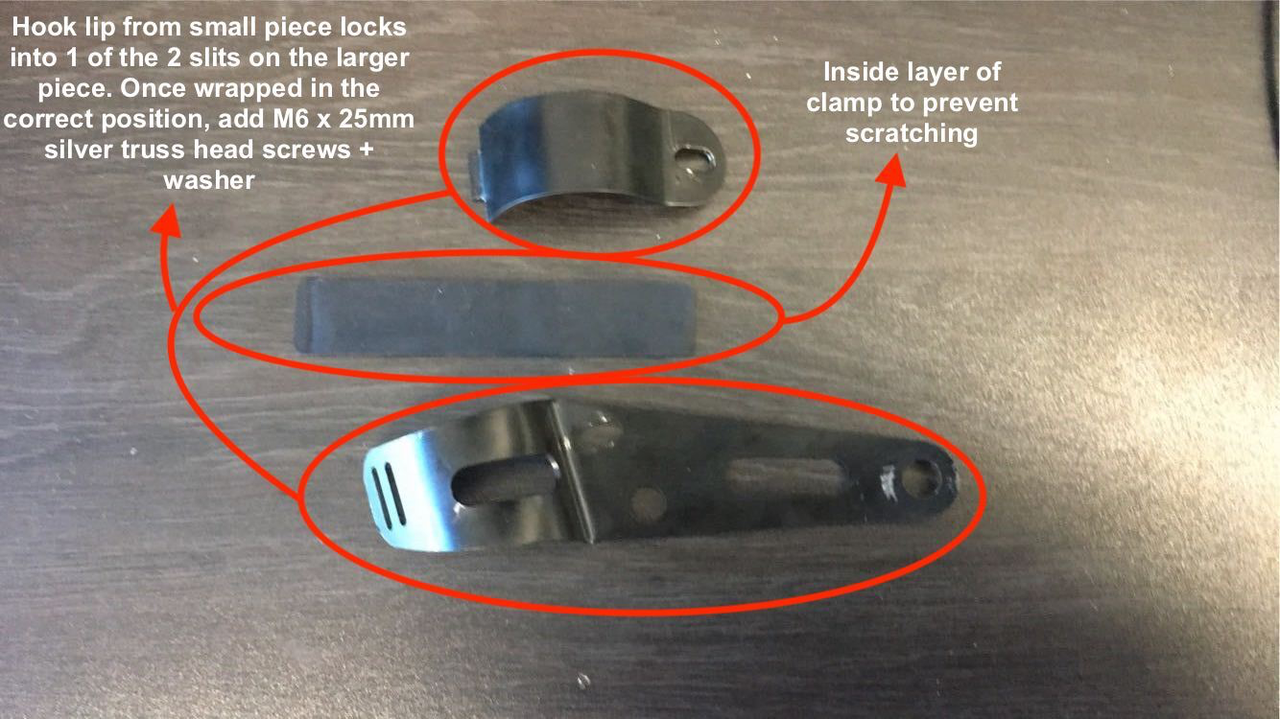

Front Headlight Clamp
e3a4c75f-5e85-4e5a-9b80-d2573171e369

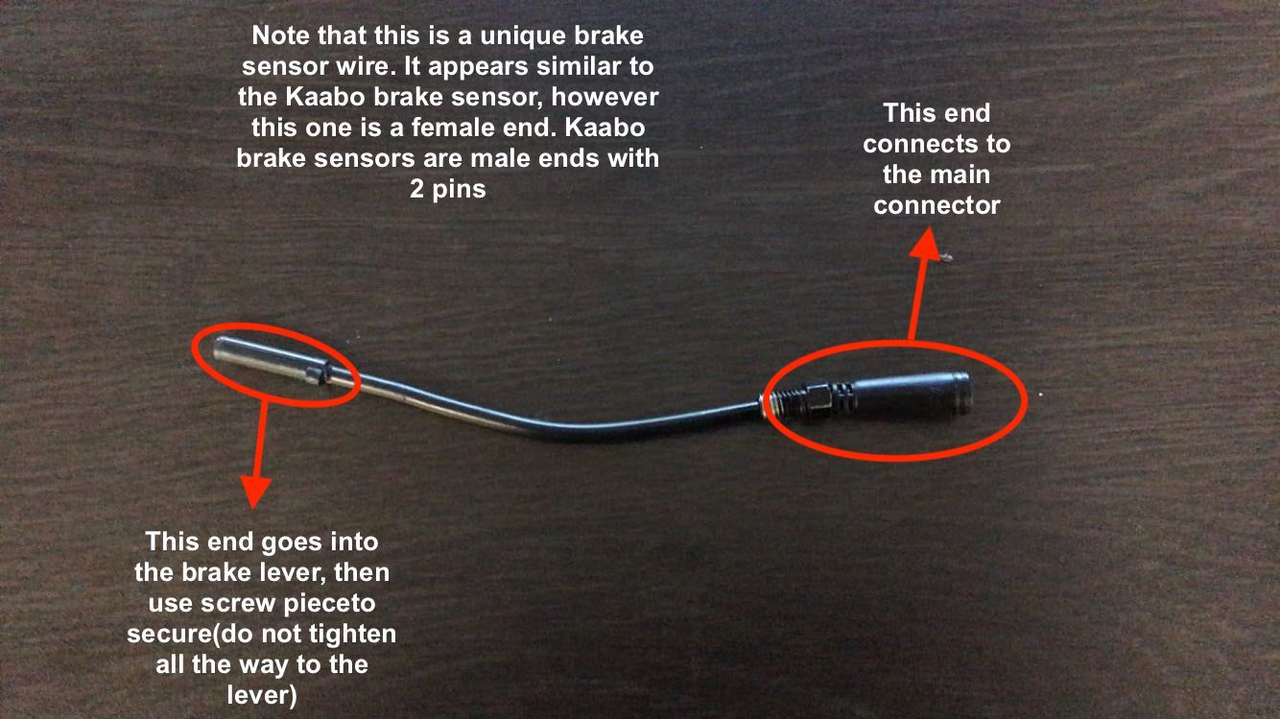

Brake Sensor Wire

757b823d-cd55-45c1-899b-53eaf32b2f48

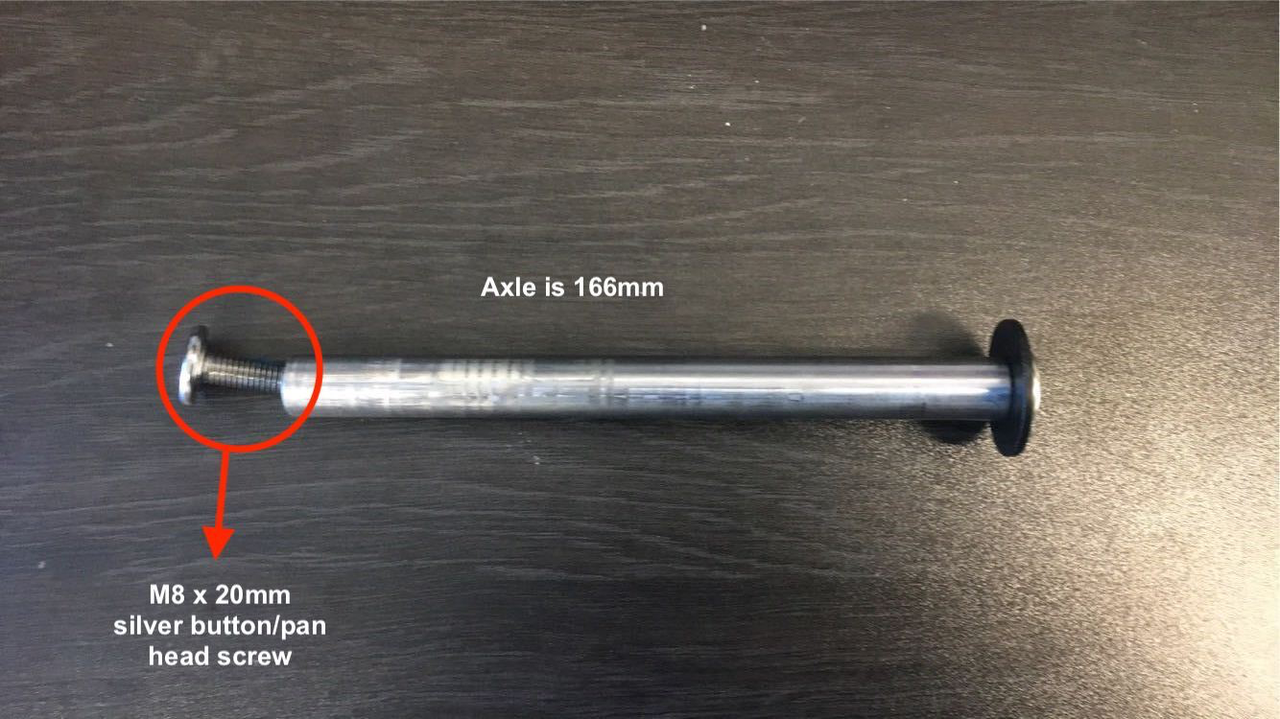

Rear Brace Axle

bd15bceb-9acc-4f87-a8e4-ac0583790d2e
