Roadrunner Front Fork Information and Loosening/TighteningUpdated a month ago

• Fork width has increased to 130mm

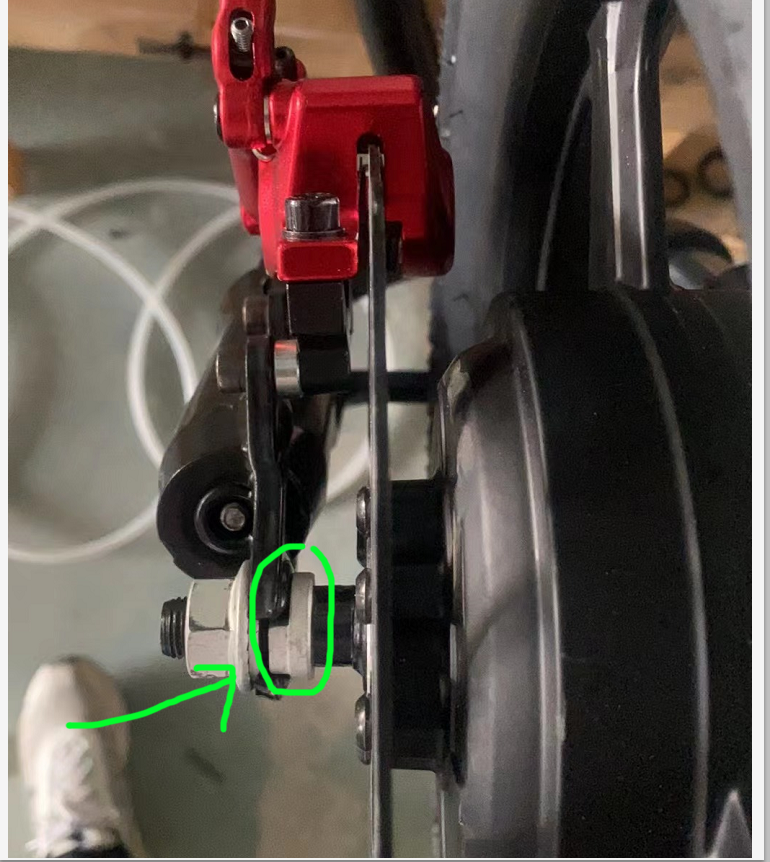

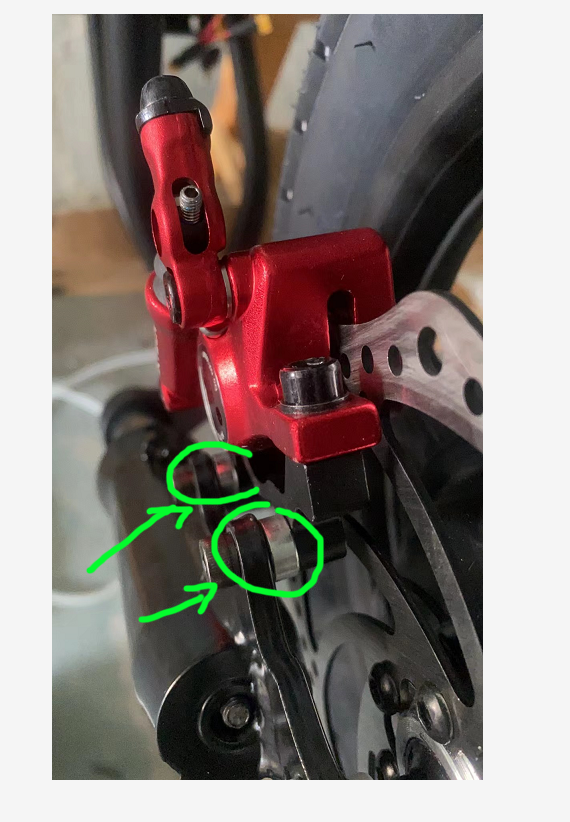

• Brake caliper brackets will in turn need spacers to move further inwards to allow the brake calipers to do their job.

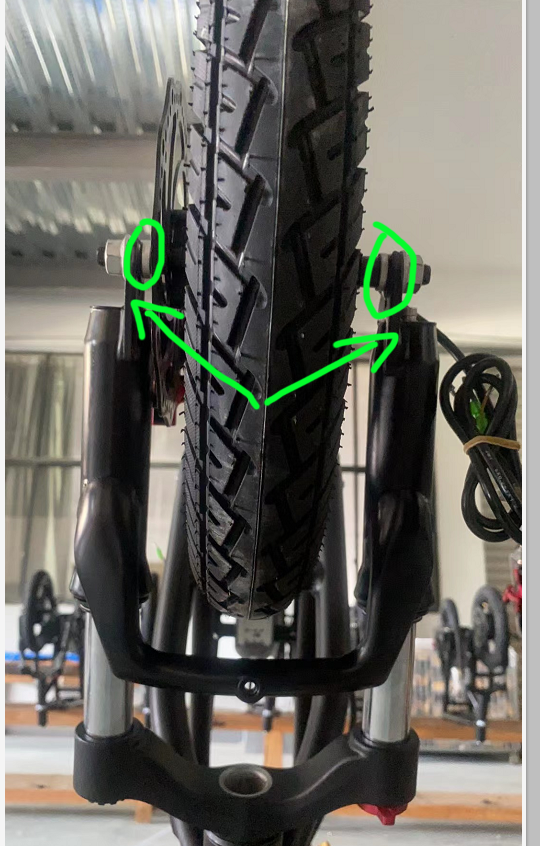

• Need axle spacers/washers to ensure motor stays at the center of the forks.

If the Forks are too Stiff or Loose

• Remove the following screw with a hex key.

• After which, that red cap can be removed.

• This exposes the black top which has grooves for the red top to sit in position.

• Align the red cap into a different position than it previously was.

• Twist the red cap to loosen or tighten the front fork suspension.

  • Clockwise stiffens the fork

  • Counter-clockwise loosens the fork

• Replace the screw and test the ride to ensure the suspension is satisfactory.

• If not, just repeat the process until it is
