Kaabo Mantis King GT Wiring DiagramUpdated a month ago

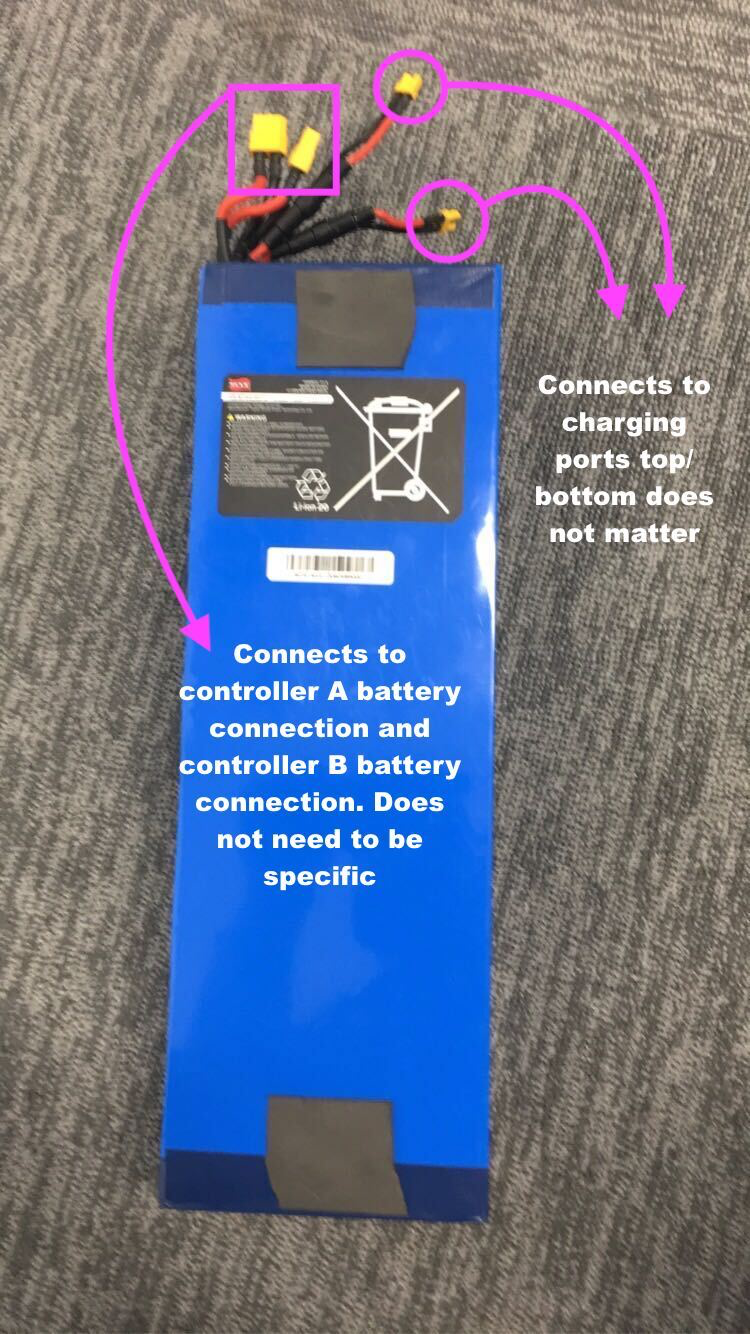

Mantis GT Battery

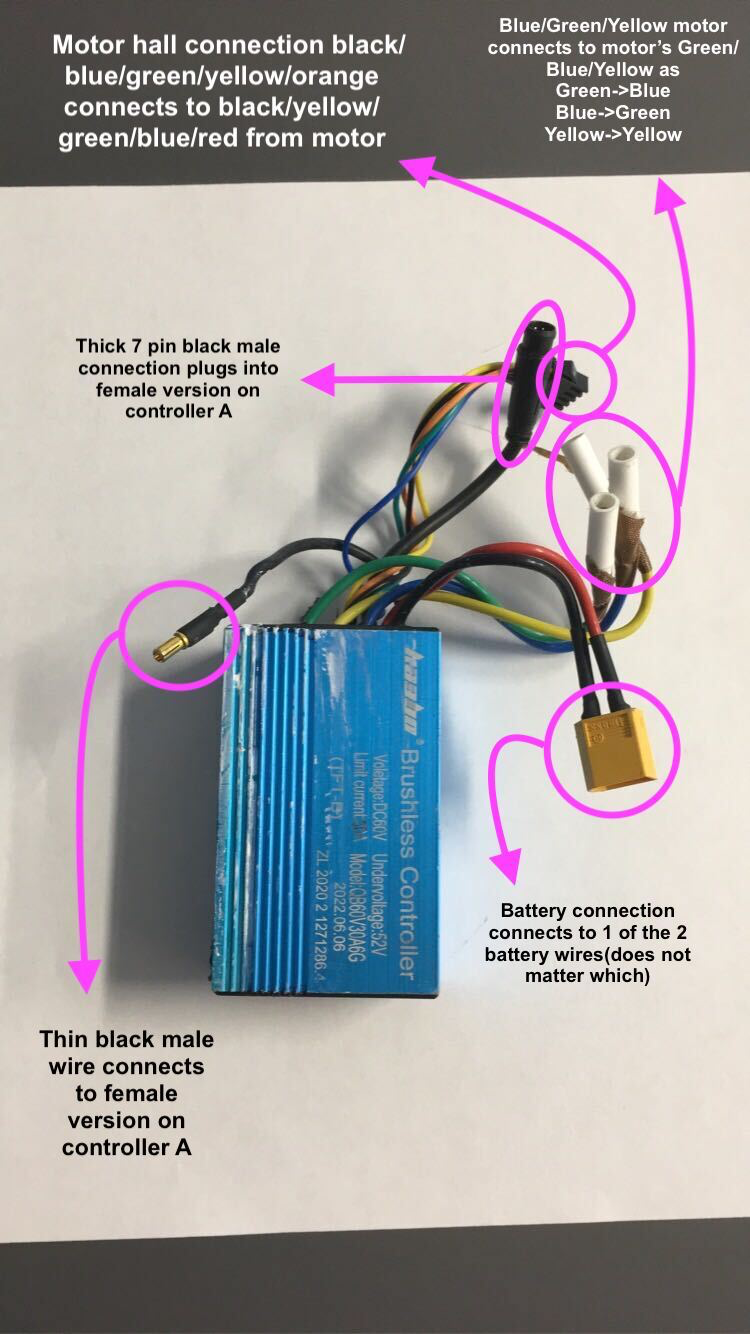

Mantis GT Controller B(front)

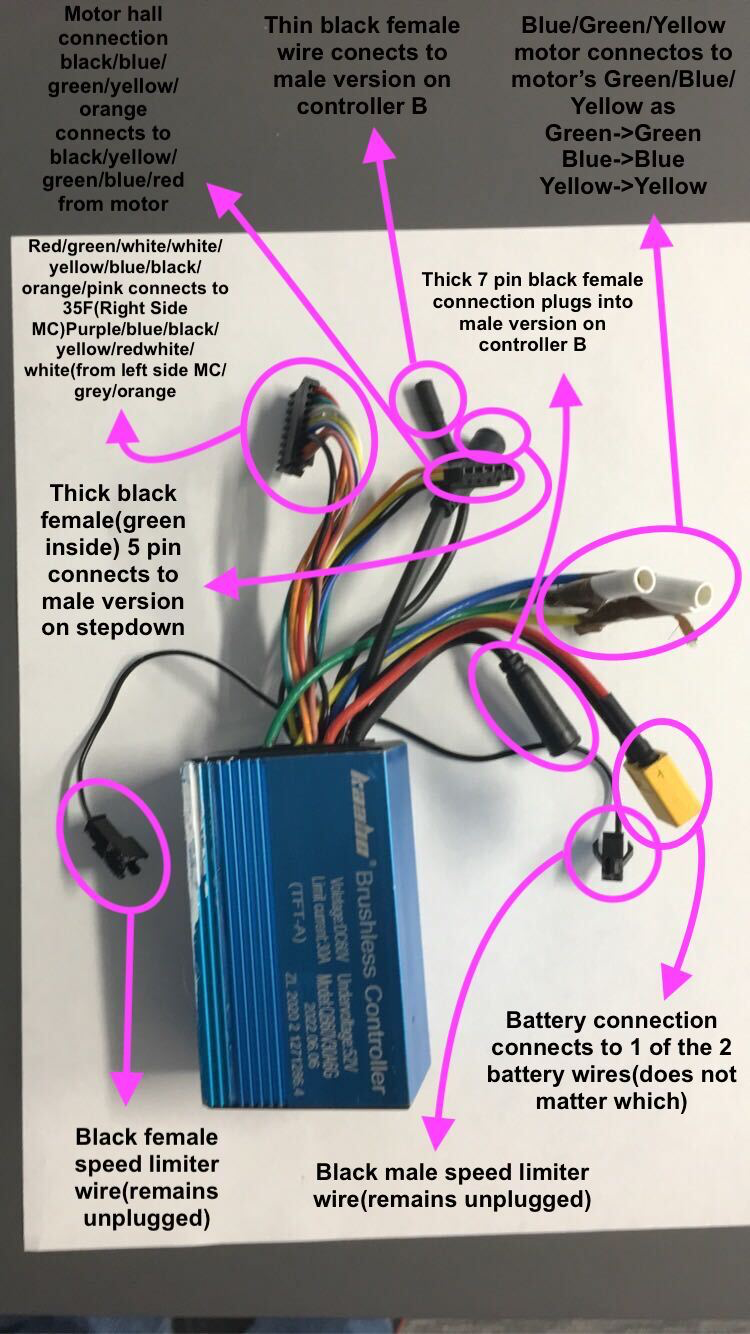

Mantis GT Controller A(rear)

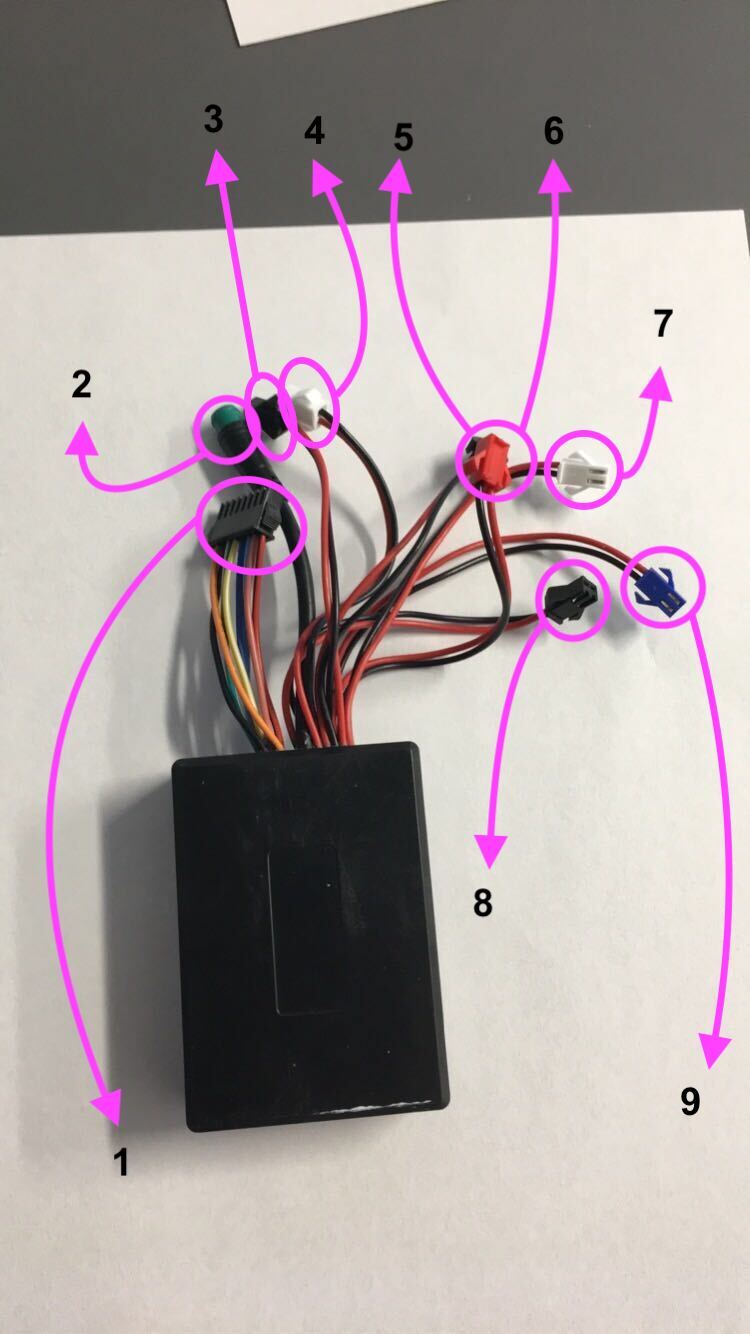

Mantis GT Step down
| 1 | 1)- Orange/Black/Green/Yellow/Blue/Light Blue/Pink/Red connects to NHX(Left side MC) Red/Black/Purple/Yellow/Green/Blue/White/Brown |
| 2 | 2)- Black male thick green 5 pin thick wire connects to black female thick green 5 pin wire from controller A |
| 3 | 3)- Red/Black connects to left side panel black/red front bulb |
| 4 | 4)-Black/Red white tipped wire connects to left side panel black/red rear orange bulb |
| 5 | 5)- (black tipped black/red wire under red tipped wire #6) Red/Black connects to right side panel black/red front bulb |
| 6 | 6)- Black/Red red tipped wire connects to left side panel black/red rear yellow bulb |
| 7 | 7)- Black/Red white tipped wire connects to right side panel rear orange bulb |
| 8 | 8)- Black/Red wire connects to left side panel black/red front bulb |
| 9 | 9)- Red/Black blue tipped wire connects to right side panel black/red wire(to yellow rear light) |

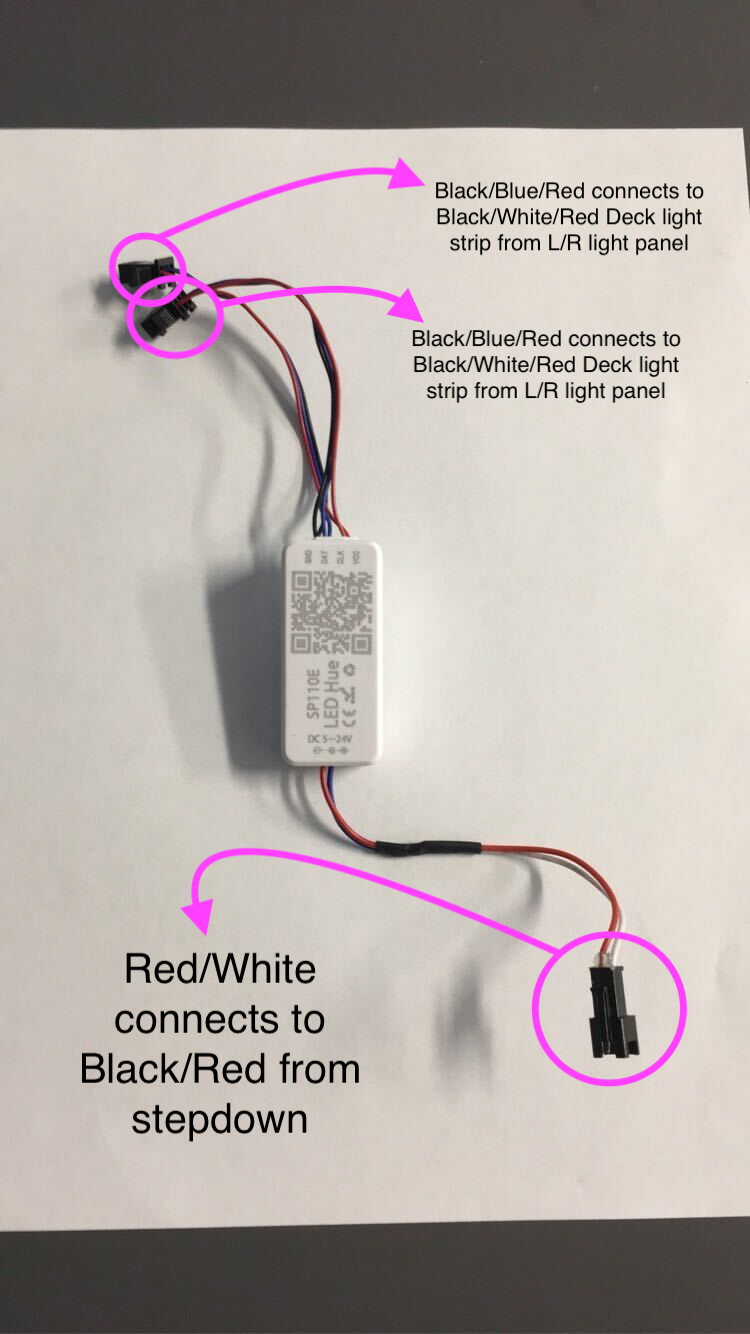

Mantis GT LED HUE
-1.png)

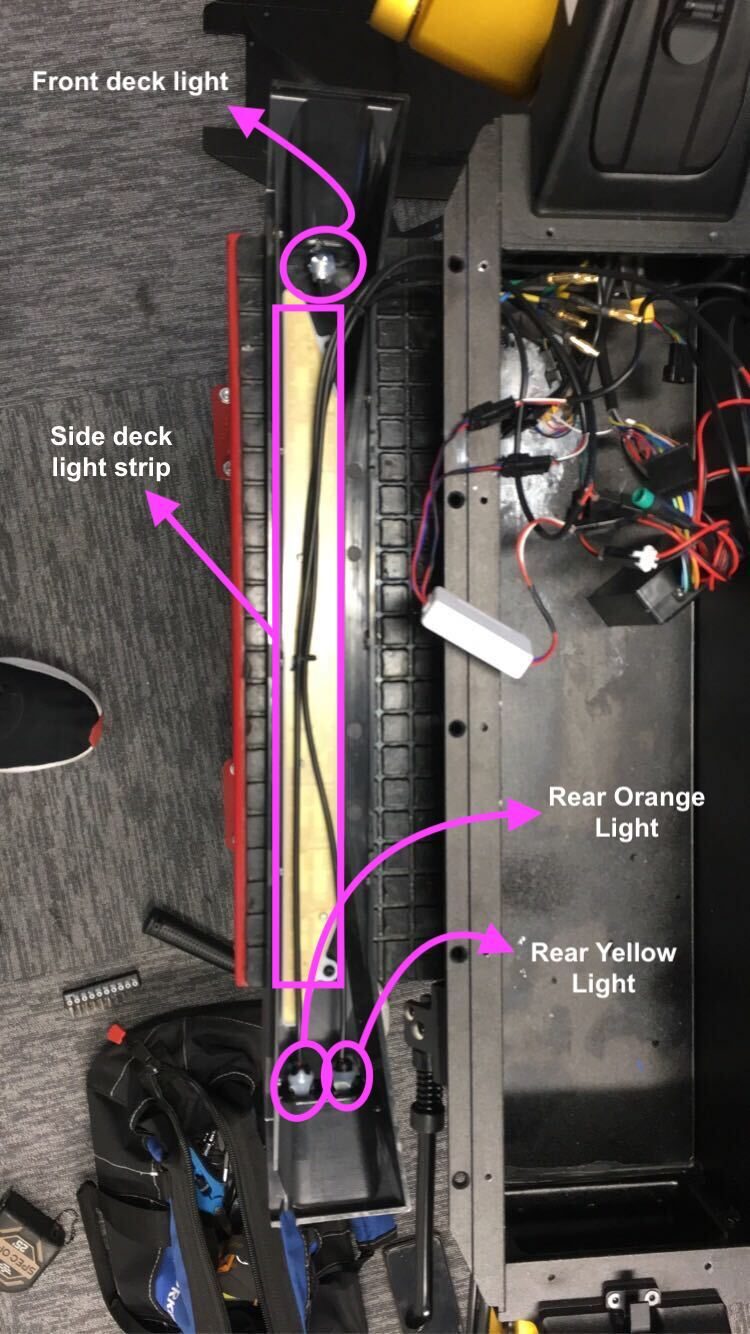

Mantis GT Light panel
-1.png)

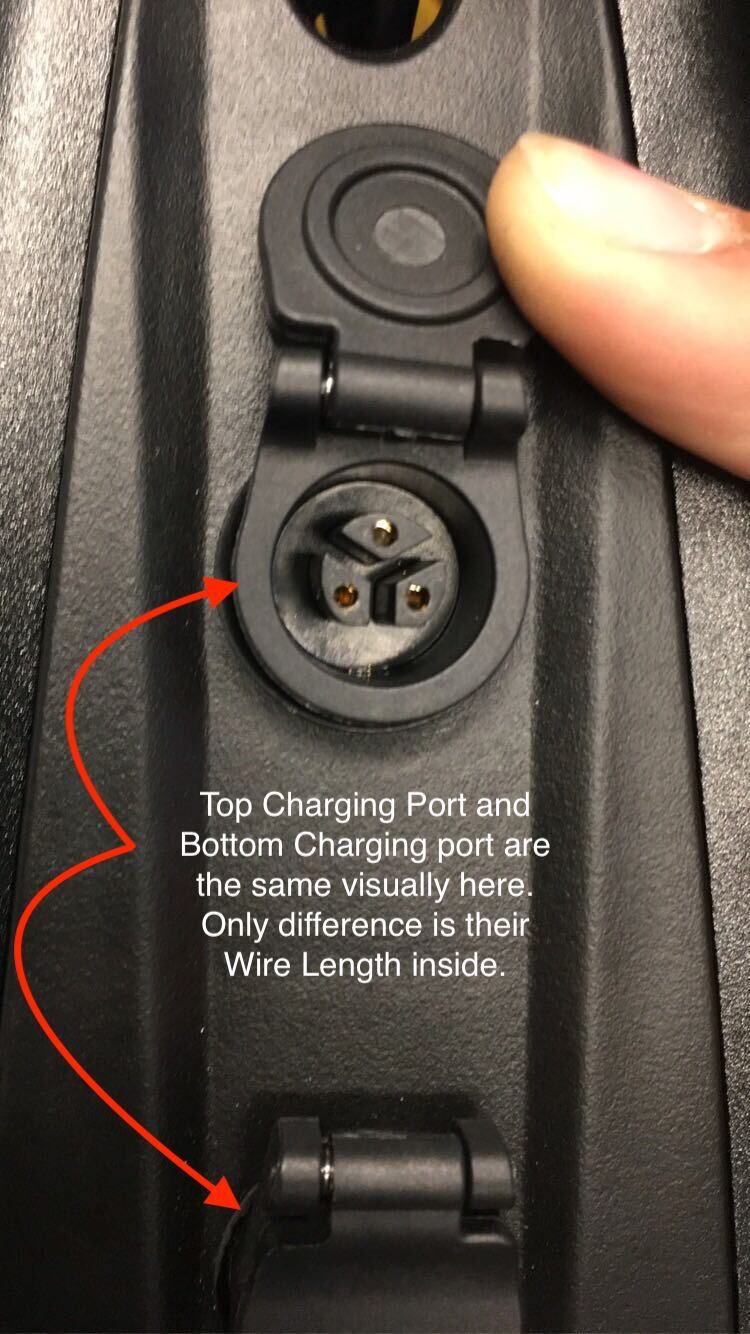

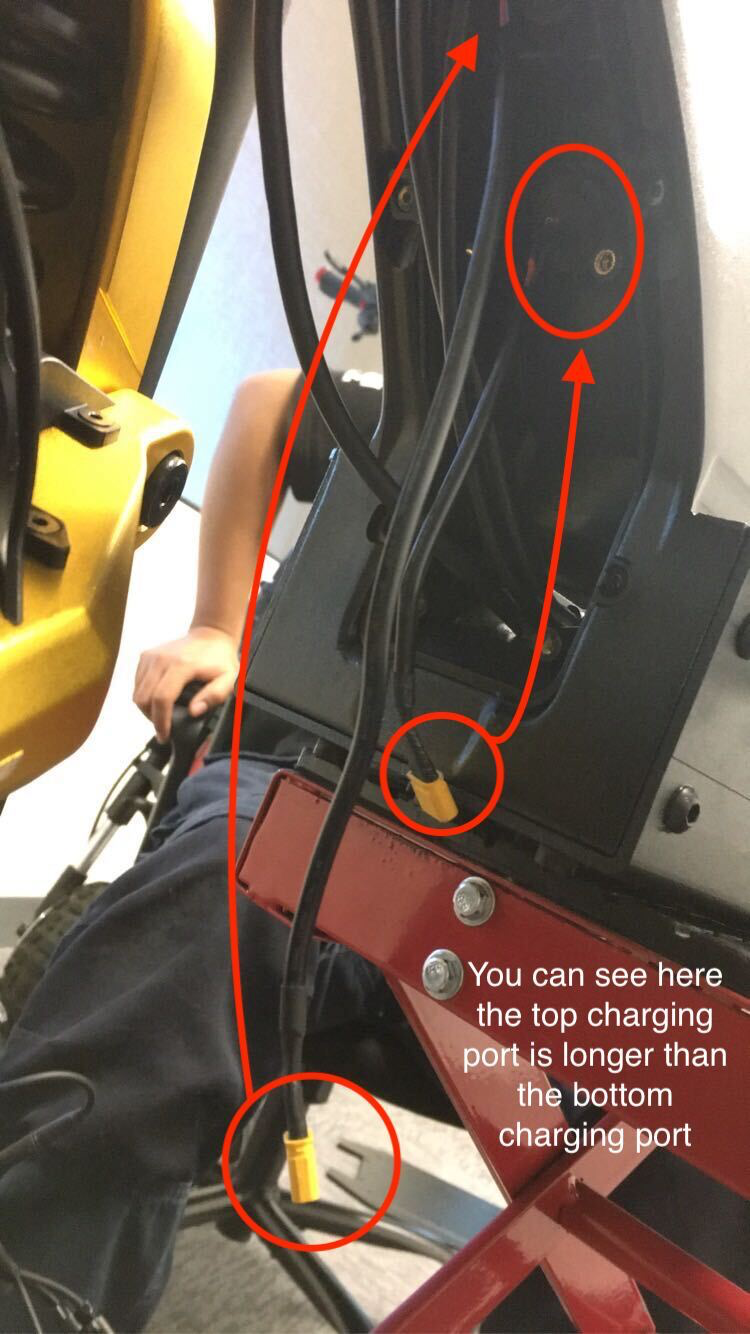

Charging Ports
