E​move Cruiser Wiring Diagrams(ALL)Updated a month ago

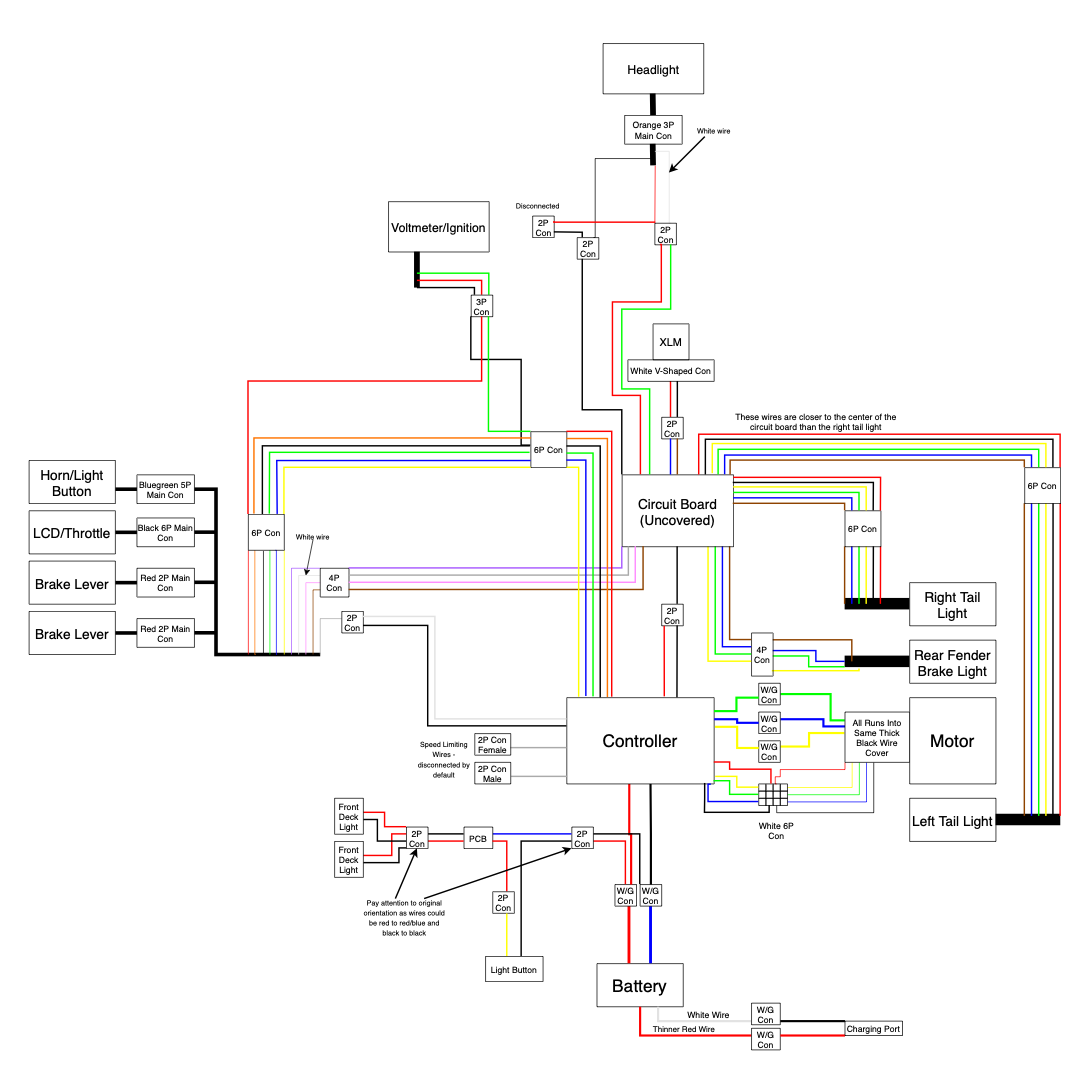

Cruiser Full Wiring Diagram(Pre-Sinewave)

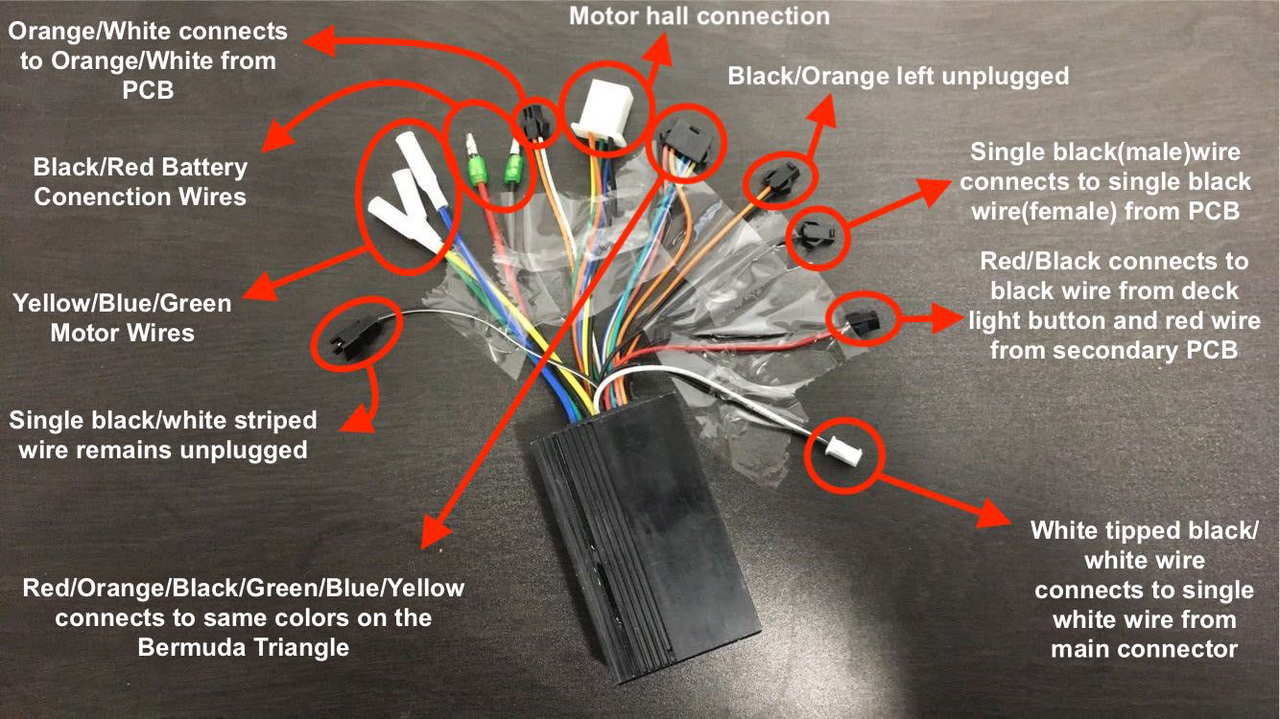

Cruiser Controller(Current)

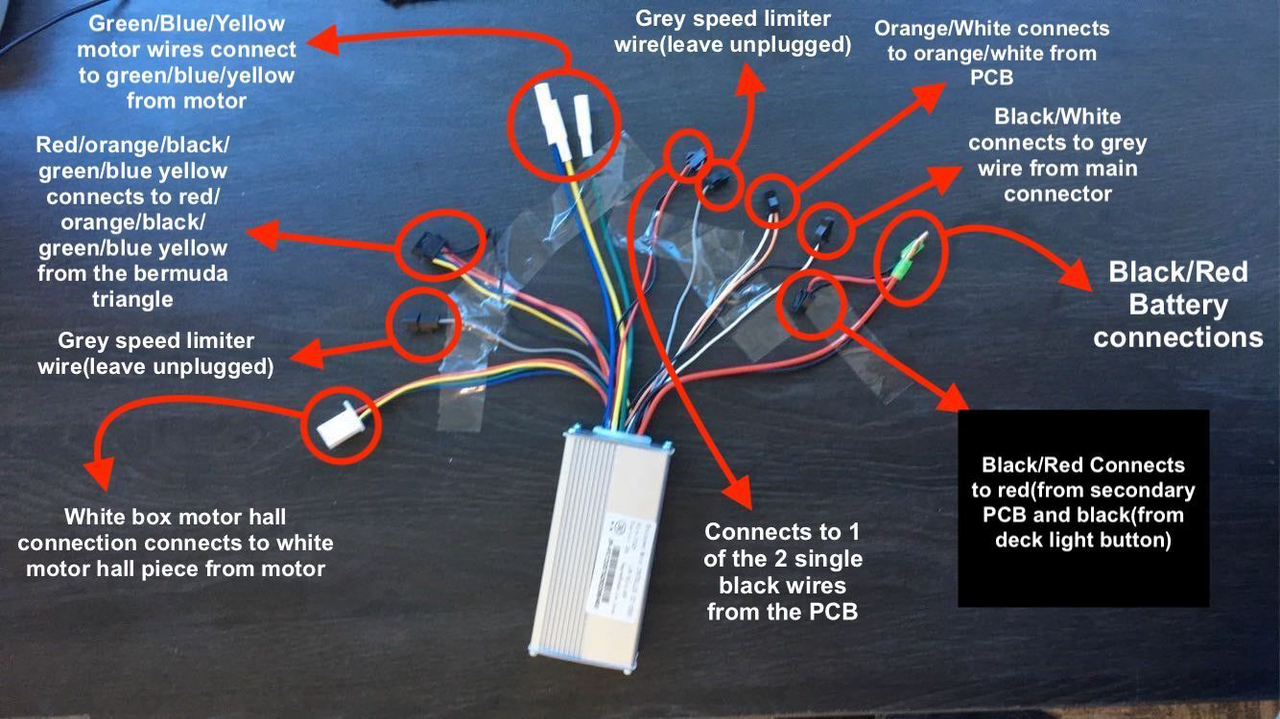

Cruiser Controller (Prior to Sinewave)

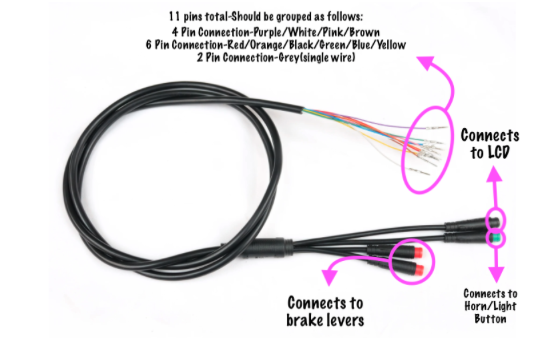

Cruiser Main Connector

Cruiser Square PCB

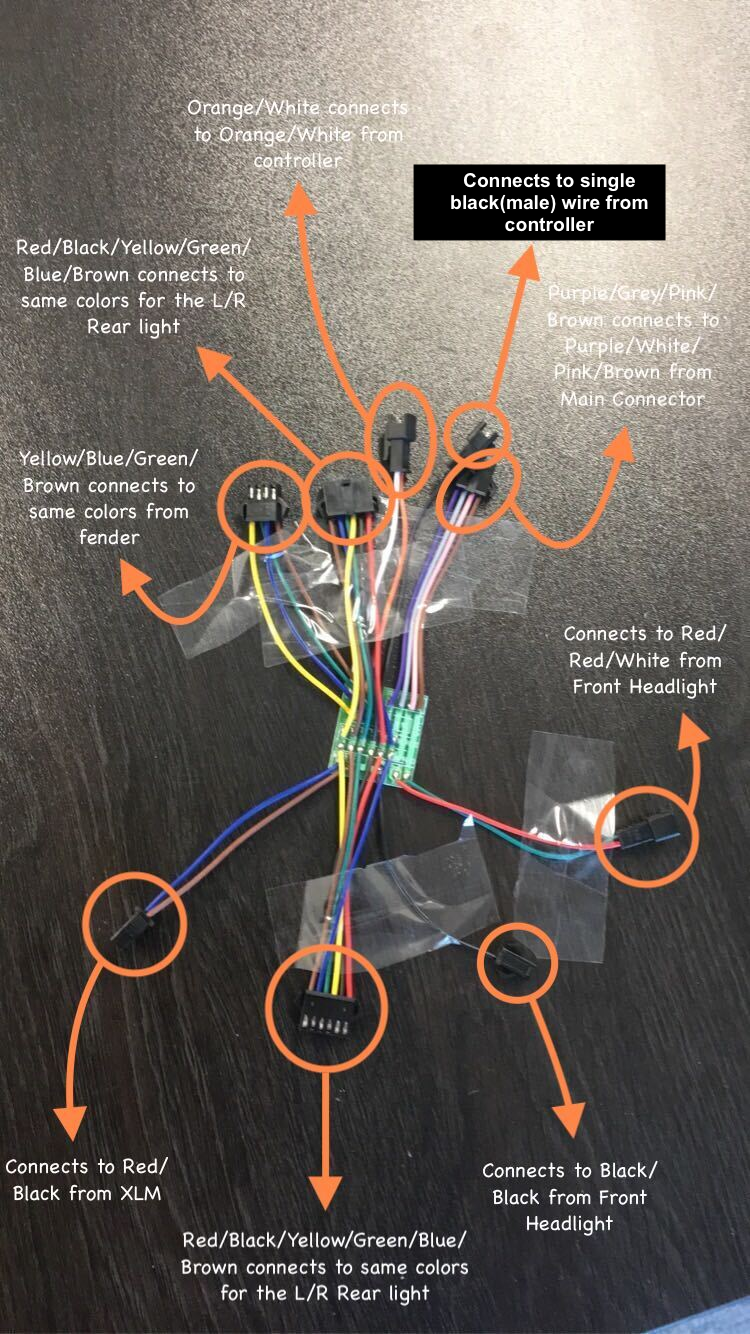

Cruiser Secondary PCB

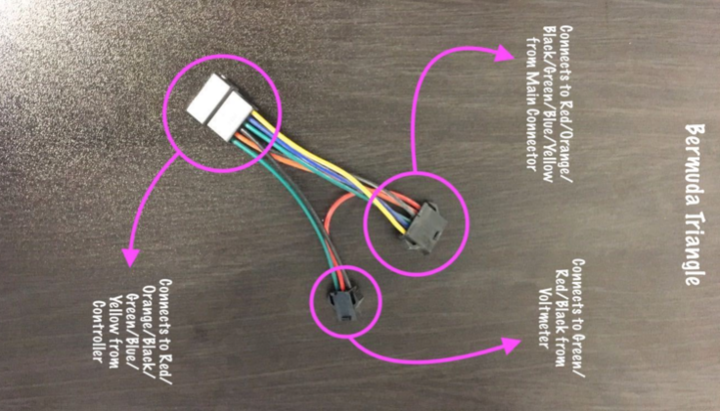

Cruiser Bermuda Triangle

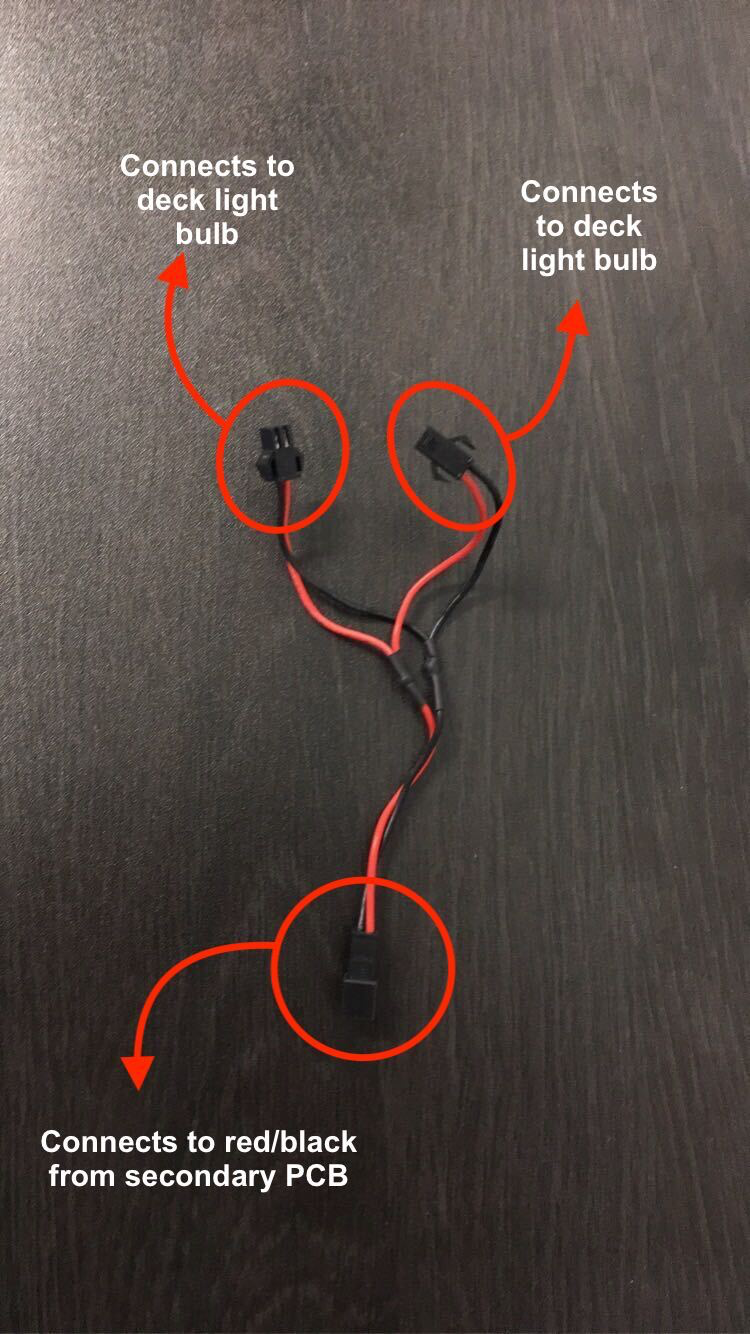

Cruiser Y-Interloop Wire(Deck Lights)

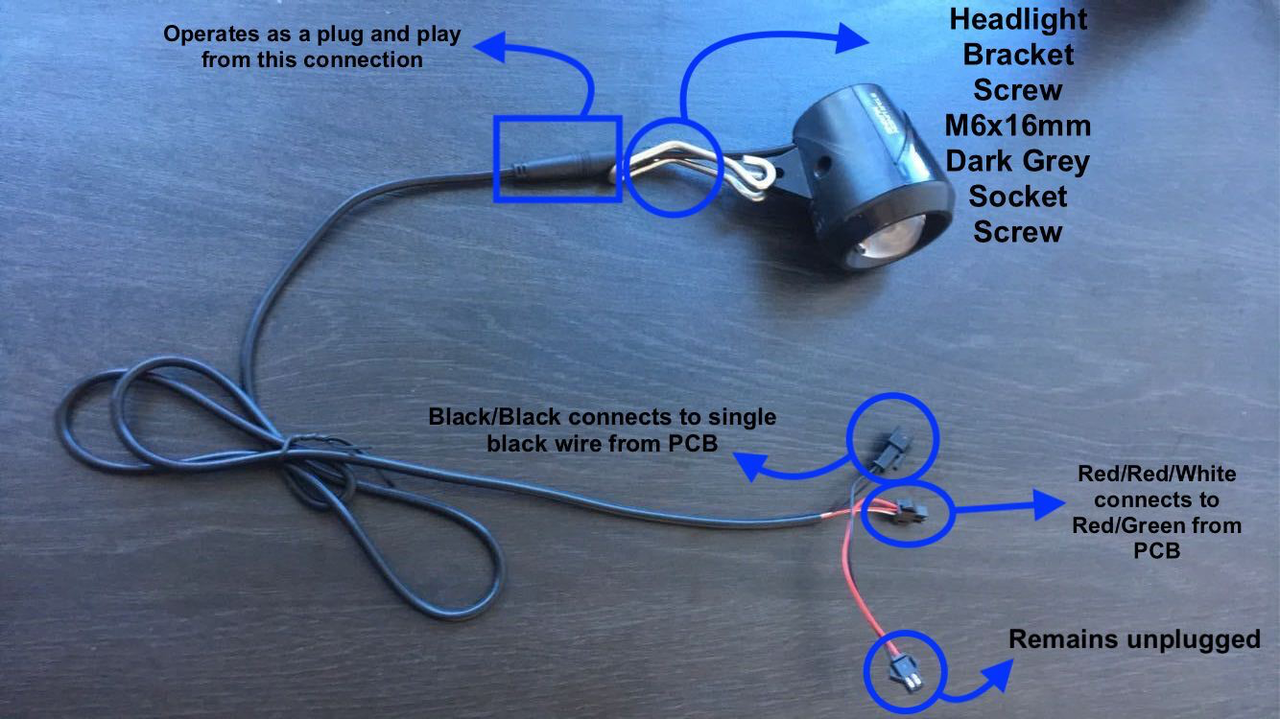

Cruiser Headlight
